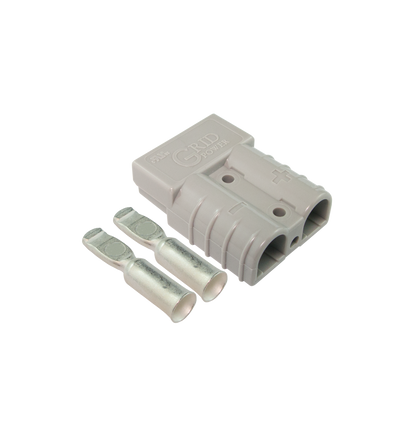

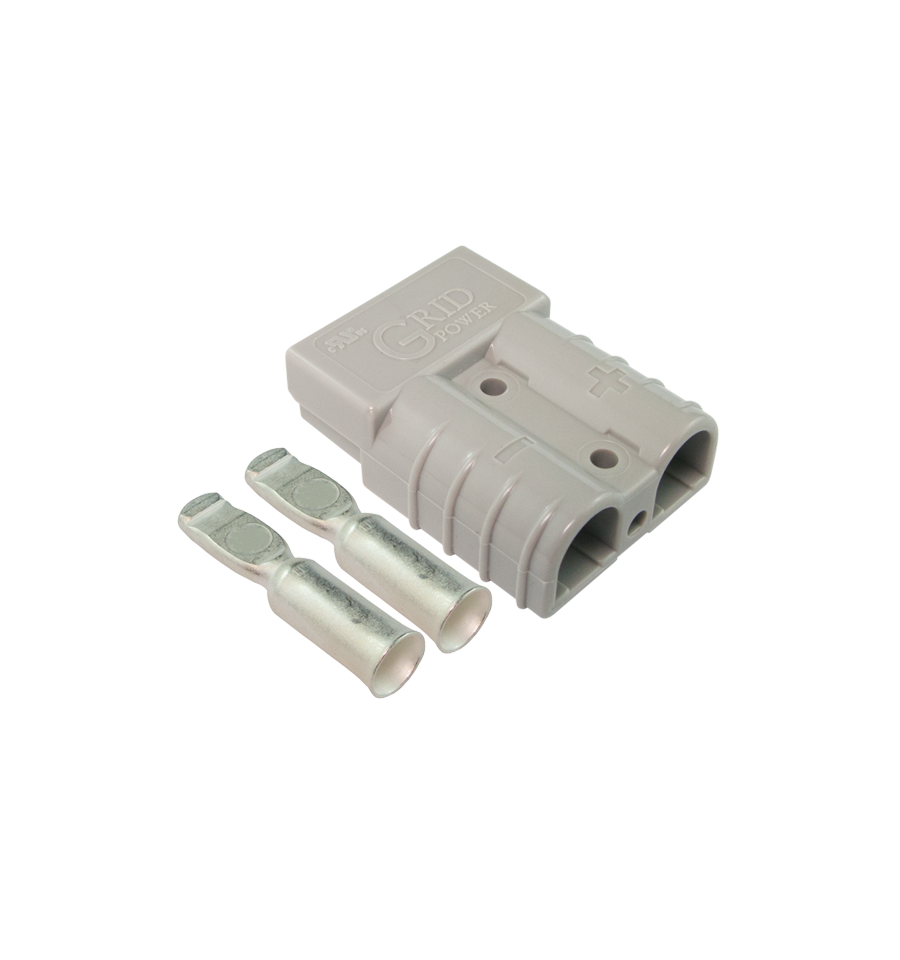

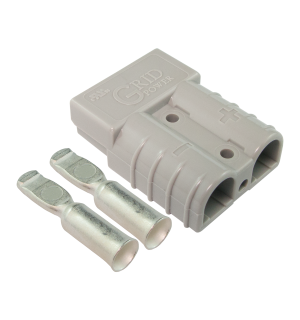

Qvee Anderson Style Connector 50A

The QVEE 50A Anderson-Style Connector is a heavy-duty, two-pole DC power connector designed to create a secure and convenient connection between batteries, vehicles, trailers and portable electrical equipment. Its genderless design allows two matching connectors to plug directly into one another, making it ideal for applications that require equipment to be connected and disconnected regularly.

Rated for up to 50A, this connector is suitable for compatible low-voltage DC power systems commonly found in four-wheel drives, caravans, trailers, trucks, machinery and off-grid installations. It is supplied with two heavy-duty terminals designed to suit approximately 8 B&S cable, also commonly identified as 8 AWG or approximately 10mm² battery cable.

Key Features

• Heavy-duty 50A current rating
• Anderson-style two-pole power connector
• Grey colour-coded housing
• Supplied with two compatible terminals
• Designed to suit approximately 8 B&S cable
• Genderless connector design
• Two identical matching connectors plug together
• Positive and negative terminals housed in one connector
• Keyed housing helps prevent incorrect connection
• Strong spring-contact system
• Secure friction-locking connection
• Quick connection and disconnection
• Suitable for repeated use
• Durable housing for automotive and equipment applications
• Ideal for permanent or portable DC accessories
• QVEE automotive electrical component

Genderless Connector Design

Unlike traditional plug-and-socket combinations, an Anderson-style connector does not use separate male and female housings. Two matching connectors of the same size and colour connect directly together.

This makes it easier to standardise power connections across multiple vehicles, trailers, battery boxes and accessories. Equipment can be transferred between compatible installations without requiring different plug and socket components.

Secure High-Current Connection

The connector’s internal terminals are held together under spring pressure when the housings are mated. This creates a secure electrical connection while still allowing the connector to be disconnected without specialised tools.

The housing also keeps the positive and negative terminals separated and correctly aligned, reducing the risk of accidental polarity reversal when the connector has been assembled correctly.

Typical Applications

The QVEE 50A connector is suitable for:

• Dual-battery systems
• Auxiliary battery connections
• Portable battery boxes
• Solar-panel connections
• Regulated solar blankets
• DC-DC battery chargers
• Caravan and camper-trailer power
• Four-wheel-drive accessories
• Fridges and portable appliances
• Air compressors
• Trailer power connections
• Electric winch control systems
• Pumps and motors
• Trucks and commercial vehicles
• Mining and agricultural equipment
• Portable work lights
• Off-grid power systems

Cable Compatibility

The supplied terminals are intended for approximately:

• 8 B&S cable
• 8 AWG cable
• Approximately 10mm² battery cable

Actual conductor dimensions can vary between cable manufacturers. Confirm the conductor cross-sectional area and terminal barrel dimensions before crimping.

A correctly sized professional crimping tool should be used to create a strong mechanical and electrical connection. An incorrect crimp can cause excessive resistance, voltage drop, heat generation and potential connector failure.

Colour-Keyed Housing

Anderson-style connector housings are commonly colour keyed. Connectors of different colours may use different internal keying and may not mate with one another.

This connector should be paired with another compatible grey 50A Anderson-style connector. Confirm the colour, physical size and keying of any existing connector before ordering.

Technical Specifications

• Brand: QVEE
• Product type: Anderson-style DC power connector
• Current rating: 50A
• Number of poles: Two
• Housing colour: Grey
• Connector arrangement: Genderless
• Cable compatibility: Approximately 8 B&S, 8 AWG or 10mm²
• Terminals included: Two
• Electrical application: Low-voltage DC power
• Connection type: Quick-connect and disconnect
• QVEE part number: QVSY50

Installation Information

Strip the cable carefully without cutting or damaging the conductor strands. Crimp one terminal onto the positive cable and the second terminal onto the negative cable using a suitable heavy-duty crimping tool.

Insert each terminated cable into the correct housing cavity until the terminal locks behind the retaining spring. Confirm the polarity and orientation against the mating connector before connecting power.

Once assembled, gently pull each cable to ensure the terminal is securely retained inside the housing.

Please Note

The connector’s 50A rating must not be exceeded. Actual safe current capacity depends on cable size, cable length, connection quality, operating temperature and installation conditions.

This connector does not provide overload or short-circuit protection. Install a correctly rated fuse or circuit breaker as close as practical to the battery or power source.

The housing is an Anderson-style connector and should not automatically be assumed compatible with every connector of a similar appearance. Confirm the size, colour and keying before purchase. A protective cover or boot may be required where the connector is exposed to dust, water or physical damage.
