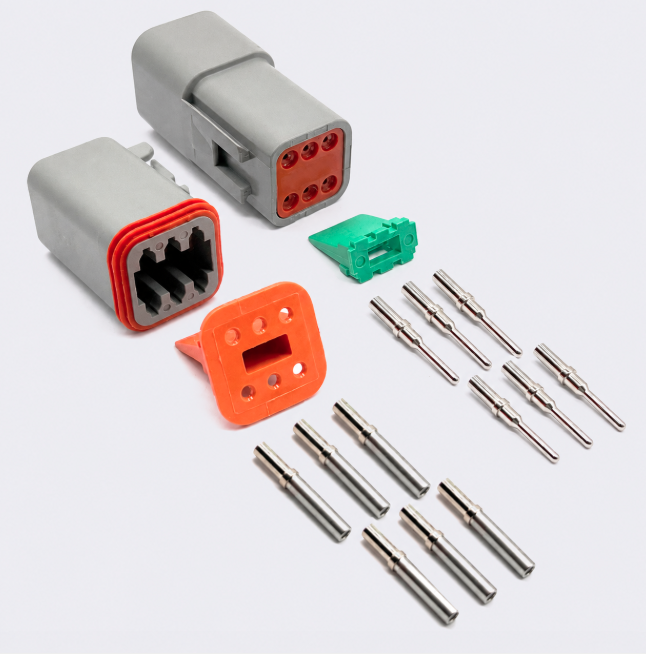

Deutsch Connector Kit (DTM Series)

The Deutsch DTM Series Connector Kit provides a compact, reliable and environmentally sealed solution for low-current automotive and equipment wiring. Based on the smaller version of the popular Deutsch DT connector design, the DTM Series is ideal for applications requiring multiple electrical connections within a limited installation space.

Designed for demanding automotive, transport, mining, agricultural, marine and industrial environments, these connectors help protect electrical contacts against moisture, dust, dirt, vibration and common automotive contaminants. Their compact construction makes them especially suitable for sensors, control circuits, electronic modules and signal wiring where a larger connector may be unnecessary or difficult to install.

Key Features

• Compact Deutsch DTM Series connector kit
• Miniature connector design for restricted installation areas
• Creates secure and detachable electrical connections
• Environmentally sealed housing construction
• Helps protect contacts against water, dust and dirt
• Positive locking latch helps prevent accidental separation
• Polarised housings assist with correct connector alignment
• Wedge locks retain contacts securely inside the housings
• Resistant to vibration and mechanical movement
• Designed for smaller-gauge, low-current wiring
• Suitable for signal, sensor and electronic-control circuits
• Ideal for custom wiring harnesses and equipment repairs
• Available in multiple circuit configurations

Complete Connector Solution

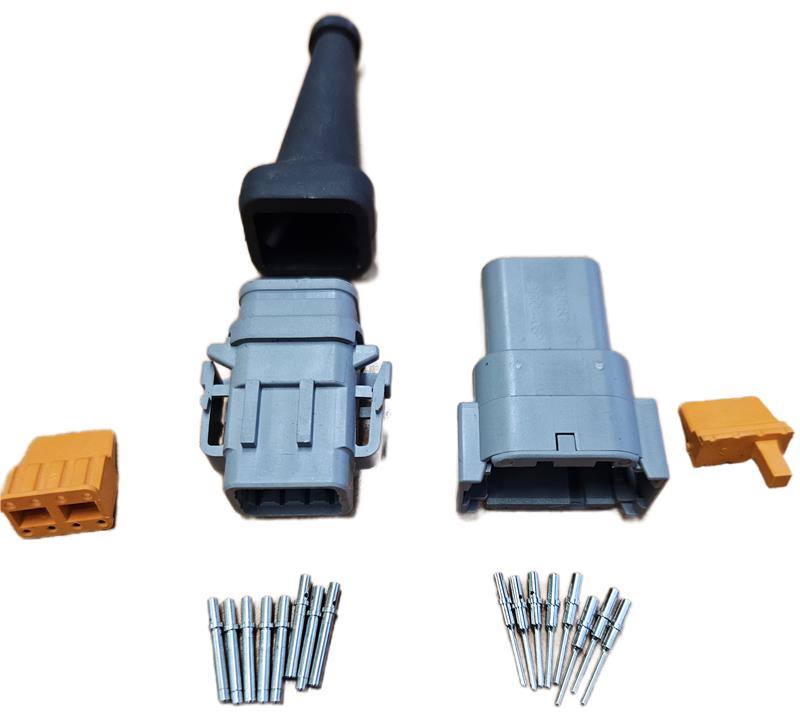

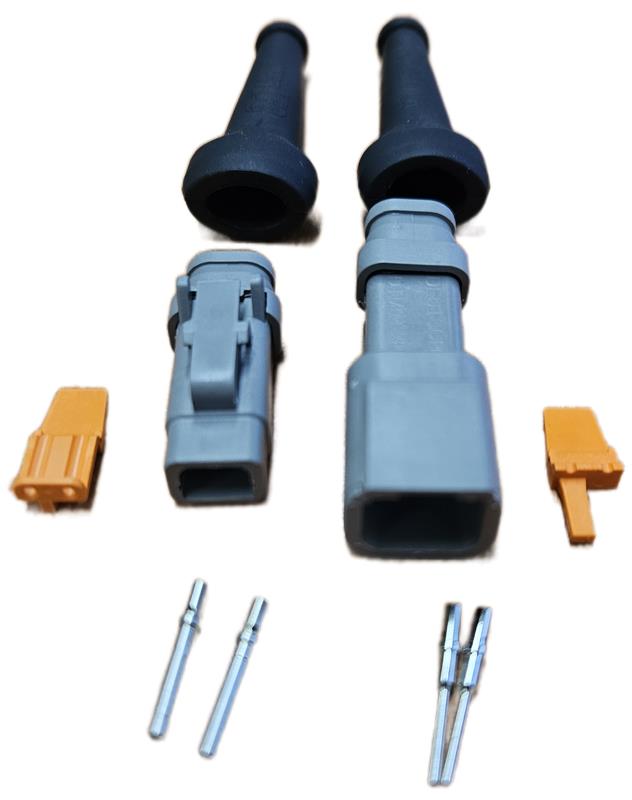

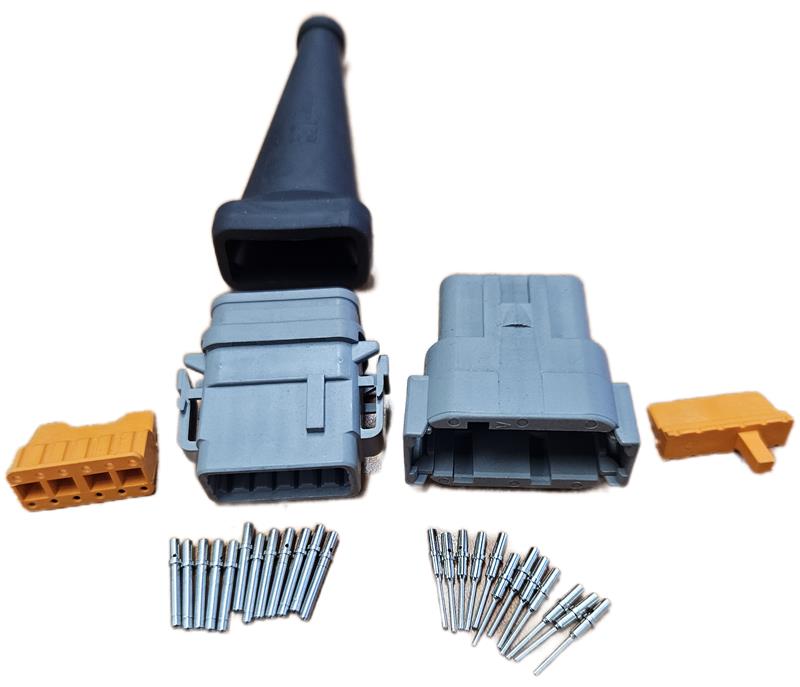

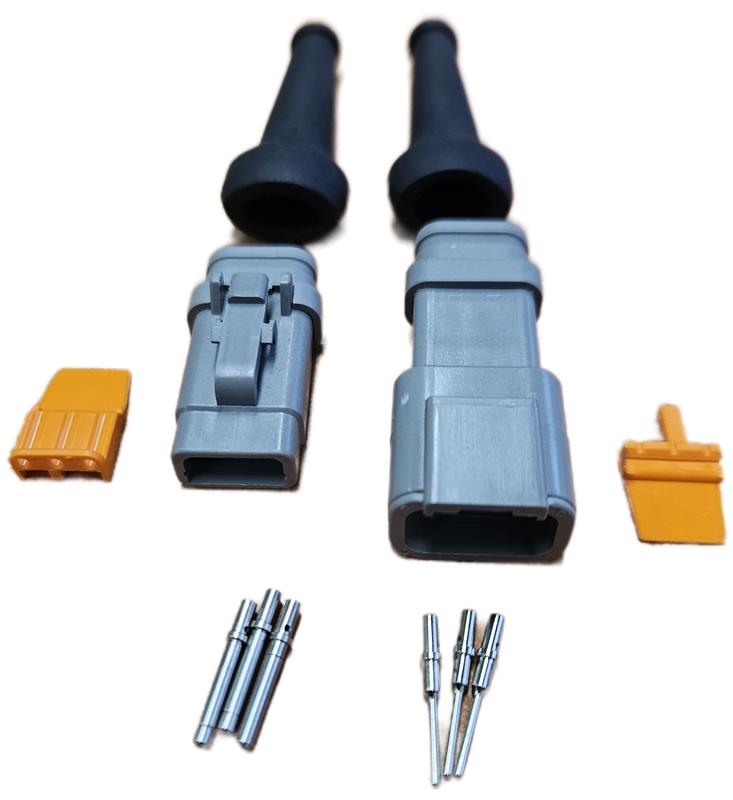

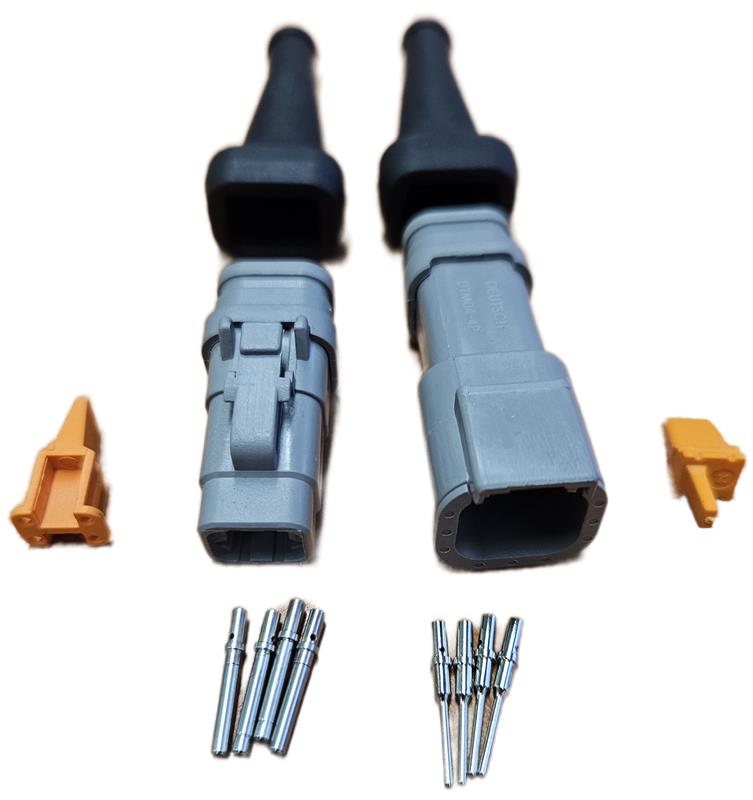

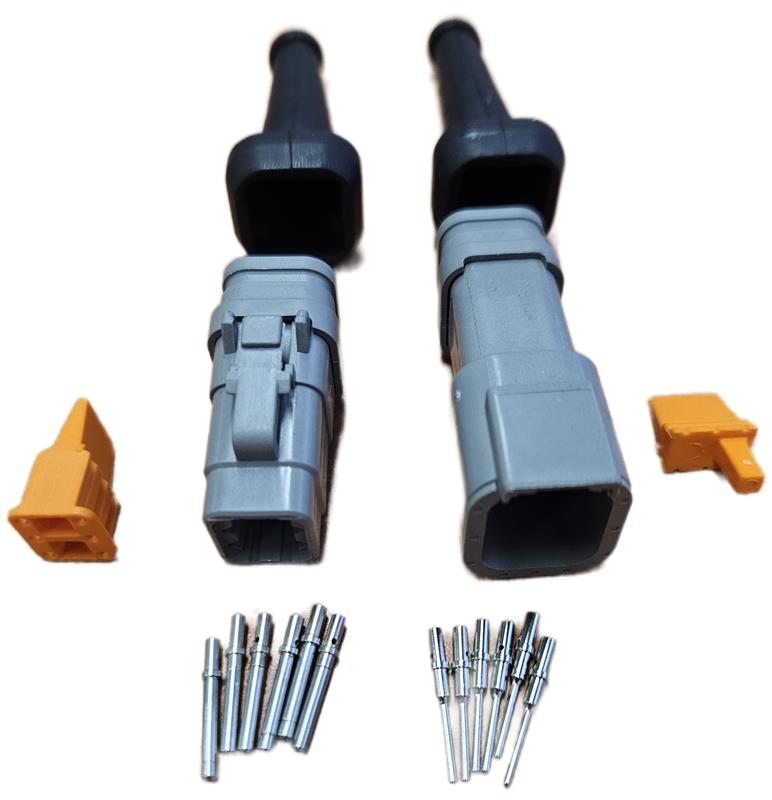

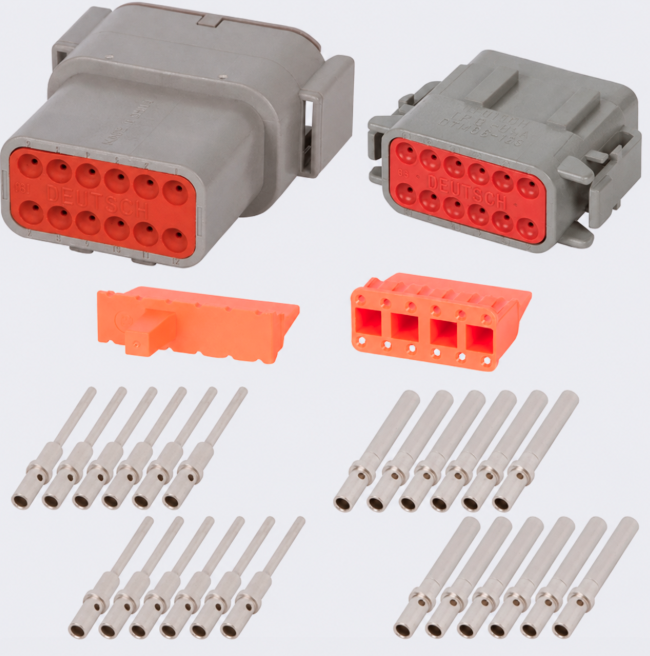

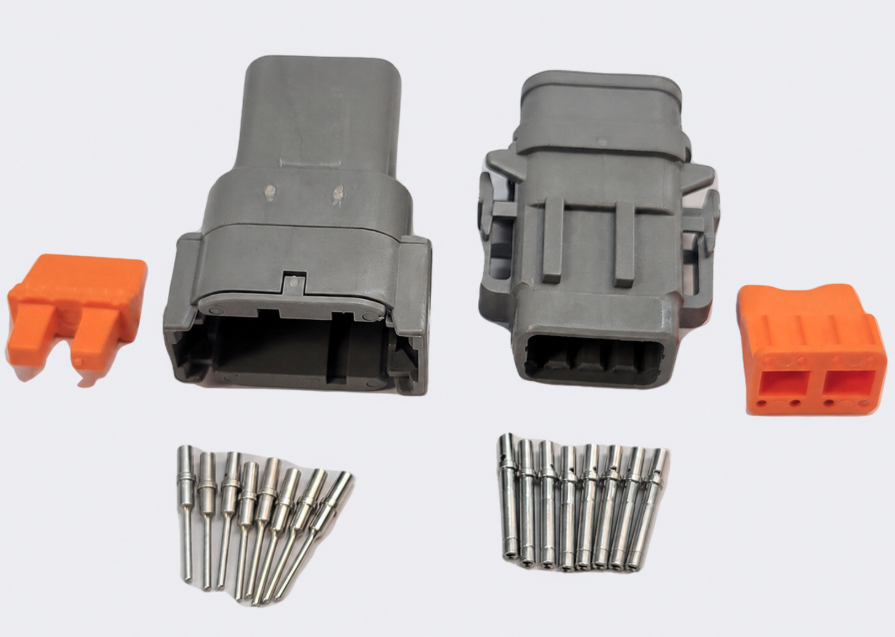

Depending on the selected configuration, each kit is generally supplied with the compatible components required to assemble one complete plug-and-receptacle connection:

• One DTM Series plug housing
• One DTM Series receptacle housing
• Compatible plug and receptacle wedge locks
• Male pin contacts
• Female socket contacts

The number of terminals supplied will correspond with the selected connector configuration. Always confirm the selected variant and package contents before ordering.

Compact DTM Series Design

The DTM Series is designed for applications where the standard DT Series connector may be too large or where lower-current circuits require a smaller connection system. Its reduced housing and contact size allows several circuits to be installed in a compact area while retaining the locking and sealing features associated with Deutsch connectors.

This makes the DTM Series particularly suitable for modern vehicles and equipment containing multiple sensors, controllers and electronic accessories.

Environmental Protection

Integrated housing seals and rear-wire sealing cavities help prevent moisture, dust and debris from reaching the electrical contacts. When assembled correctly with compatible terminals, appropriately sized cable and undamaged seals, the connector creates a dependable connection for demanding operating conditions.

The sealed design is especially useful for wiring located in engine compartments, machinery, vehicle chassis areas, external equipment and other locations exposed to vibration or environmental contaminants.

Typical Applications

Deutsch DTM Series connector kits are commonly used for:

• Sensors and electronic controls
• Low-current lighting circuits
• Automotive wiring harnesses
• Engine-management systems
• Communications and telemetry equipment
• GPS and tracking systems
• Reversing cameras
• Switch panels and control modules
• Warning lights and indicators
• Trucks and commercial vehicles
• Mining and earthmoving equipment
• Agricultural machinery
• Marine electrical systems
• Motorcycles and recreational vehicles
• Custom wiring and equipment repairs

Available Configurations

The DTM Series is commonly available in several circuit sizes, including:

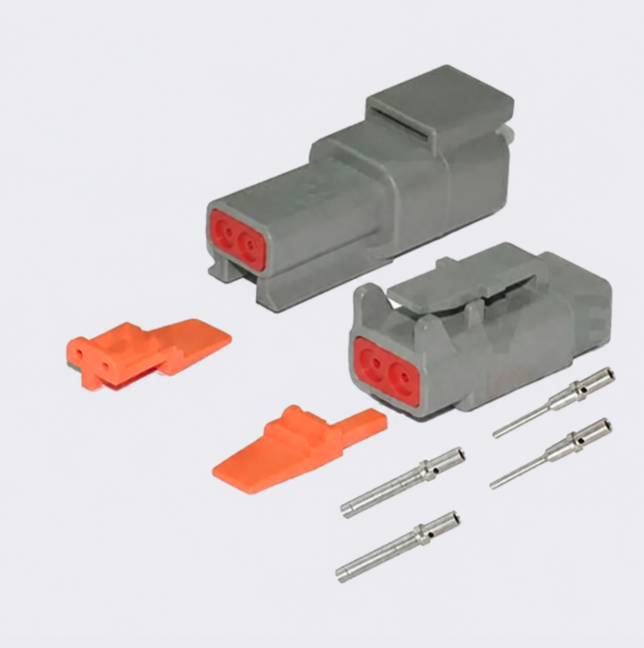

• 2-way

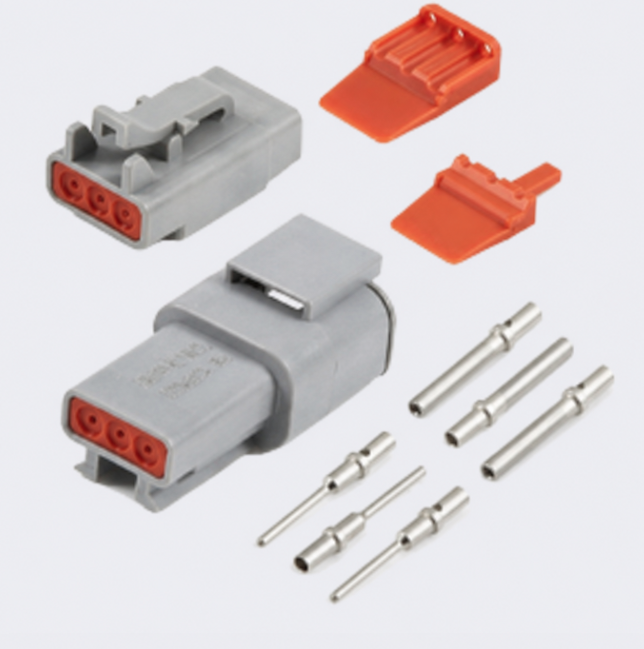

• 3-way

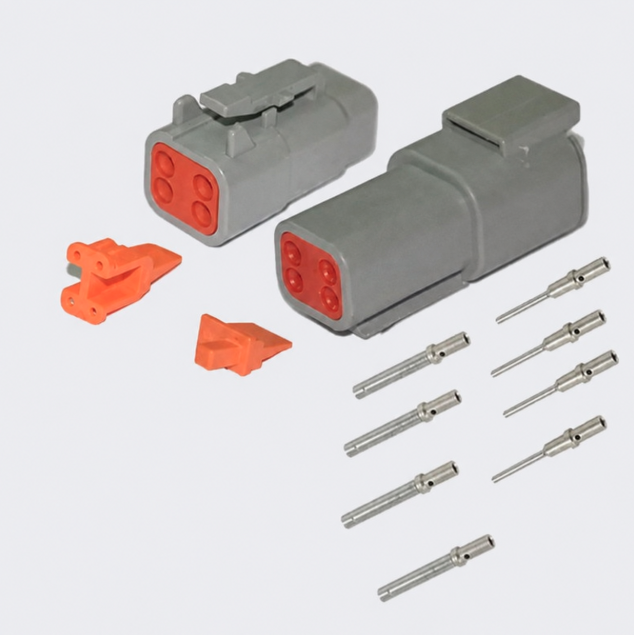

• 4-way
• 6-way
• 8-way
• 12-way

Select the required number of circuits from the available product options. Each cavity carries one individual electrical connection.

Durable and Secure Construction

The thermoplastic housings are designed to withstand the vibration, impact and temperature changes commonly experienced in mobile and industrial equipment. A positive locking latch provides an audible and tactile indication when the connector is fully engaged.

The plug and receptacle housings are also polarised to help prevent incorrect mating. Internal wedge locks help maintain terminal alignment and provide secondary contact retention.

Assembly Instructions

For best results:

1. Select cable within the compatible size range for the supplied contacts.
2. Strip the cable insulation to the correct length.
3. Crimp the appropriate pin or socket contact using a compatible Deutsch crimping tool.
4. Insert each terminated wire through the rear seal until the contact locks into position.
5. Fit the corresponding wedge lock.
6. Mate the plug and receptacle until the locking latch engages.
7. Gently pull each wire to confirm correct contact retention.

A suitable professional crimping tool is recommended to achieve the correct mechanical strength, electrical performance and environmental seal.

Please Note

The DTM Series is designed primarily for lower-current circuits and uses smaller contacts than the standard DT and heavy-duty DTP Series. Confirm the connected equipment’s maximum current, wire size and terminal requirements before installation.

Deutsch DTM, DT and DTP components are different sizes and are not interchangeable unless compatibility is specifically stated. Fit compatible cavity plugs to any unused positions to help maintain environmental protection.

The connector kit does not provide overload or short-circuit protection. Appropriate fuses, relays and circuit protection must be installed separately where required.
