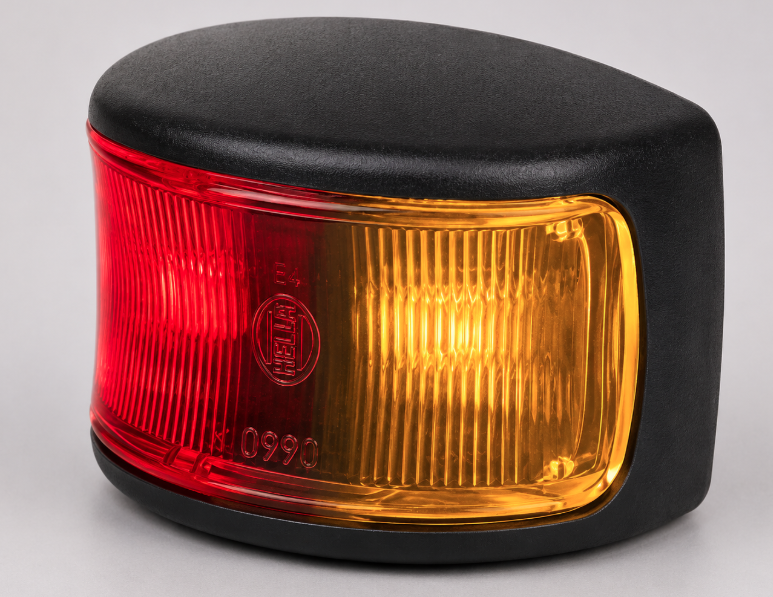

Hella DuraLED Marker Lamp – DT Connector

The Hella DuraLED Heavy-Duty Surface-Mount Marker Lamp is a durable LED side-marker solution designed for trailers, trucks, commercial vehicles and equipment operating in demanding environments. Featuring red and amber illumination, the lamp helps define the side and rearward outline of the fitted vehicle, improving its visibility to surrounding road users during night-time and low-light operation.

Its integrated 2-pole Deutsch DT connection provides a secure, serviceable electrical interface suited to professional vehicle wiring systems. Unlike permanently attached cable arrangements, the DT connection allows the lamp to be disconnected for maintenance or replacement without cutting the vehicle wiring.

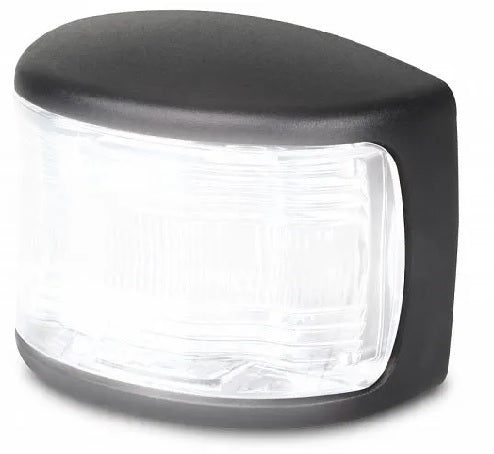

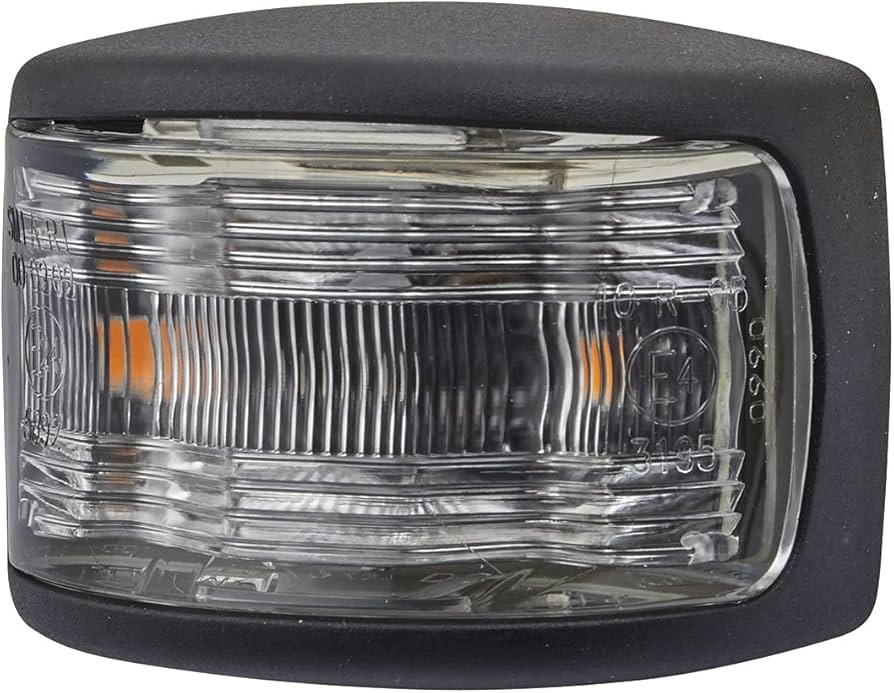

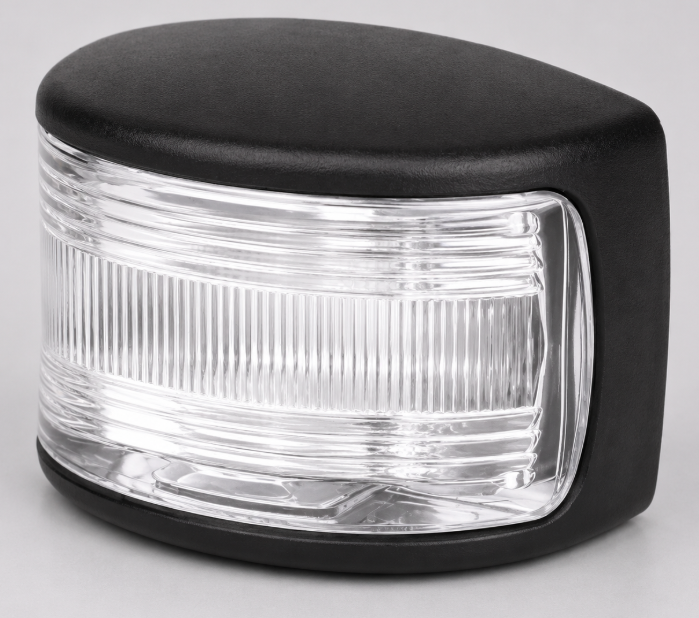

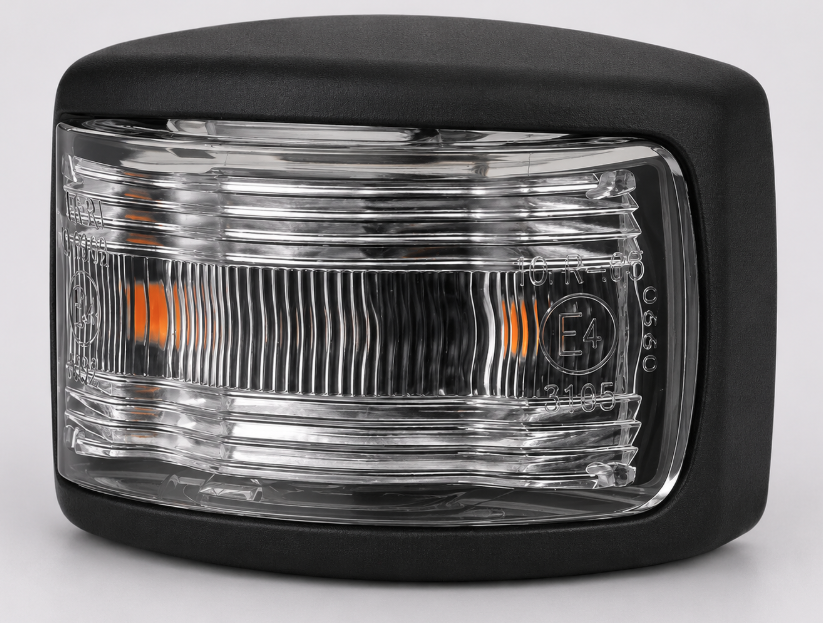

Designed for horizontal surface mounting, this lamp combines a robust nylon housing with an ultra-durable Grilamid® lens. The optic appears clear while the lamp is switched off, producing a clean, modern appearance before illuminating in its designated marker colours.

Key Features

• Genuine Hella DuraLED marker lamp
• Heavy-duty red and amber side-marker function
• Integrated LED light source
• Surface-mount installation
• Suitable for horizontal mounting
• Integrated 2-pole Deutsch DT connection
• Multivolt operation for 12V and 24V vehicles
• Wide 9–33V DC operating range
• Power consumption below 1W
• Durable nylon housing
• High-performance Grilamid® lens
• Clear appearance until illuminated
• Fully sealed against dust and temporary water immersion
• Resistant to high-pressure and steam-jet cleaning
• Reverse-polarity protection
• High resistance to impact, UV exposure, chemicals and environmental stress
• RFCommSafe™ design
• Suitable for demanding transport, mining and commercial applications

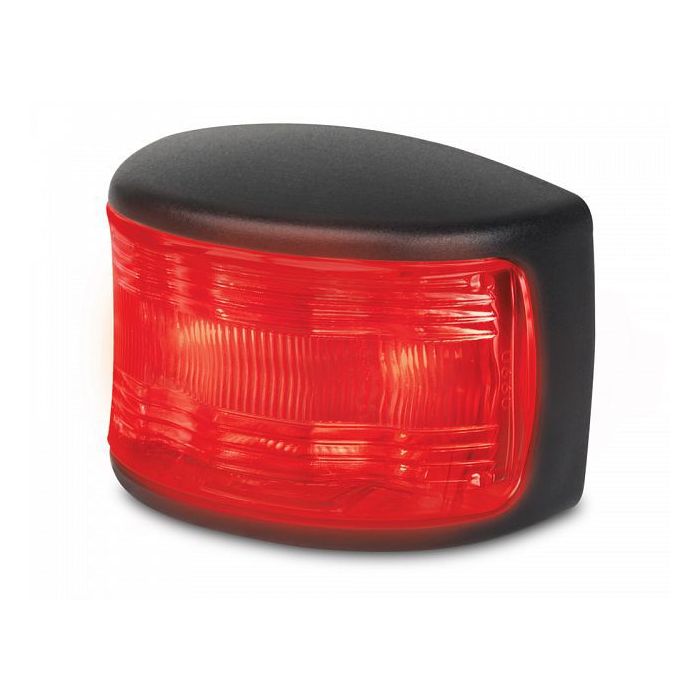

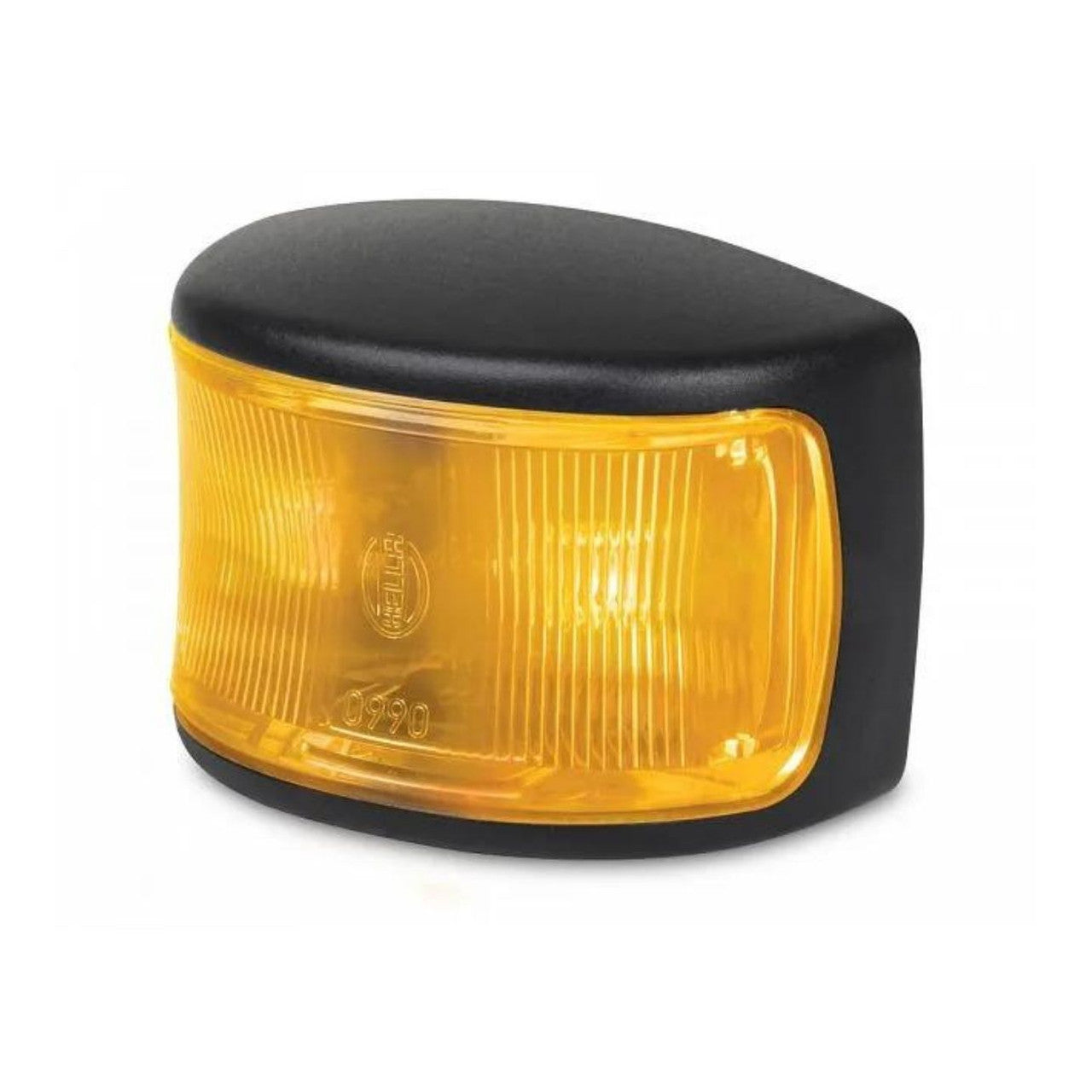

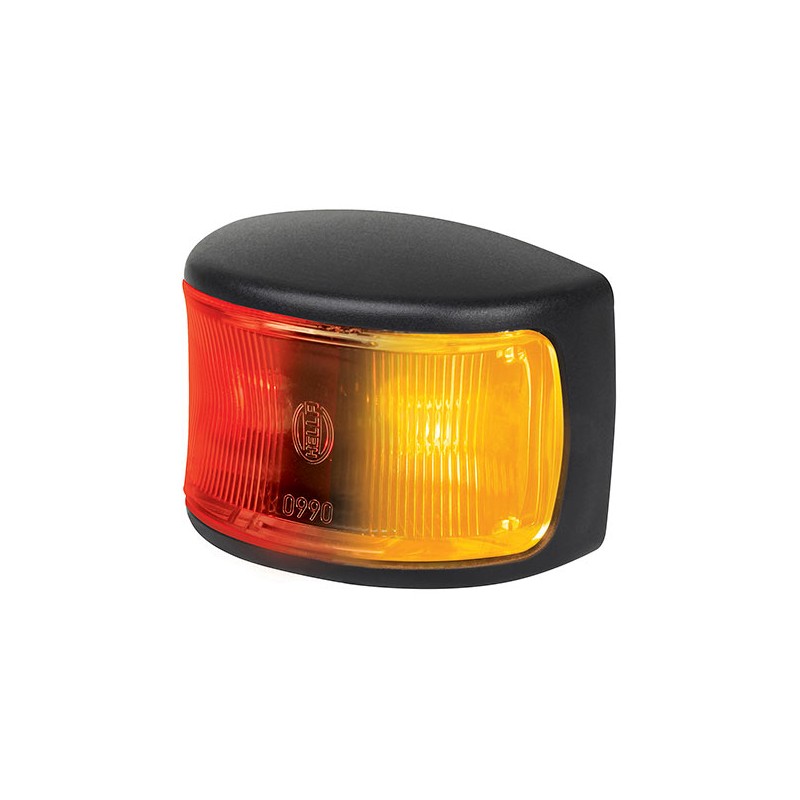

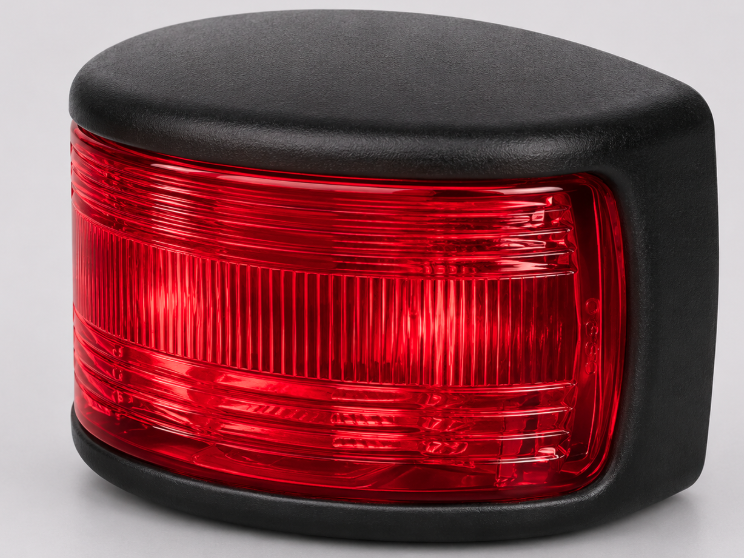

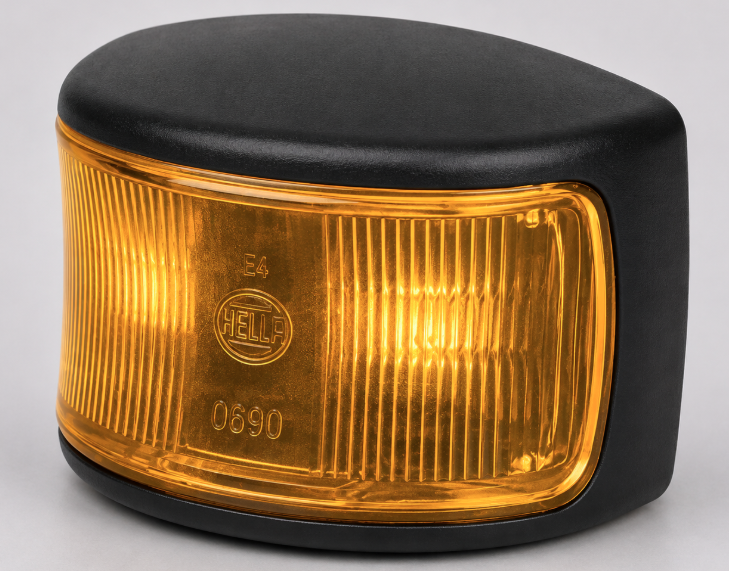

Red and Amber Marker Function

The lamp is designed to provide red and amber marker illumination, helping indicate the position and outline of a long vehicle or trailer when viewed from different directions. This is particularly useful on commercial trailers, transport equipment and specialised vehicle bodies where clearly identifying the vehicle’s outer dimensions is important.

The precise colour visible to approaching road users depends on the lamp’s orientation and installation position. It must therefore be mounted in the correct location and direction to perform its approved side-marker function.

Multivolt 9–33V Operation

Hella’s Multivolt technology provides optimum performance across an input range of 9–33V DC, making the lamp suitable for both 12V and 24V electrical systems.

The internal electronics regulate the LED output as the vehicle’s supply voltage changes, helping maintain consistent illumination during normal operation. This makes the lamp suitable for mixed commercial fleets and a wide variety of vehicle platforms.

Heavy-Duty Grilamid® Lens

The lamp incorporates a high-performance Grilamid® polyamide lens designed to provide exceptional impact strength and long-term resistance to ultraviolet exposure, chemicals and environmental stress.

This durable lens material is particularly valuable on trailers, mine-spec vehicles and heavy machinery, where lamps may be exposed to road debris, cleaning chemicals, direct sunlight and continuous vibration.

Sealed for Demanding Environments

The Hella DuraLED marker lamp carries protection ratings designed for demanding exterior installations:

• IP6K7: Protected against dust and temporary water immersion
• IP6K9K: Protected against dust and high-pressure or steam-jet cleaning

These ratings make the lamp suitable for commercial vehicles and equipment that may be regularly washed or operated in wet, dusty and dirty environments. The Deutsch connector and mating harness must also be correctly assembled and sealed to maintain installation reliability.

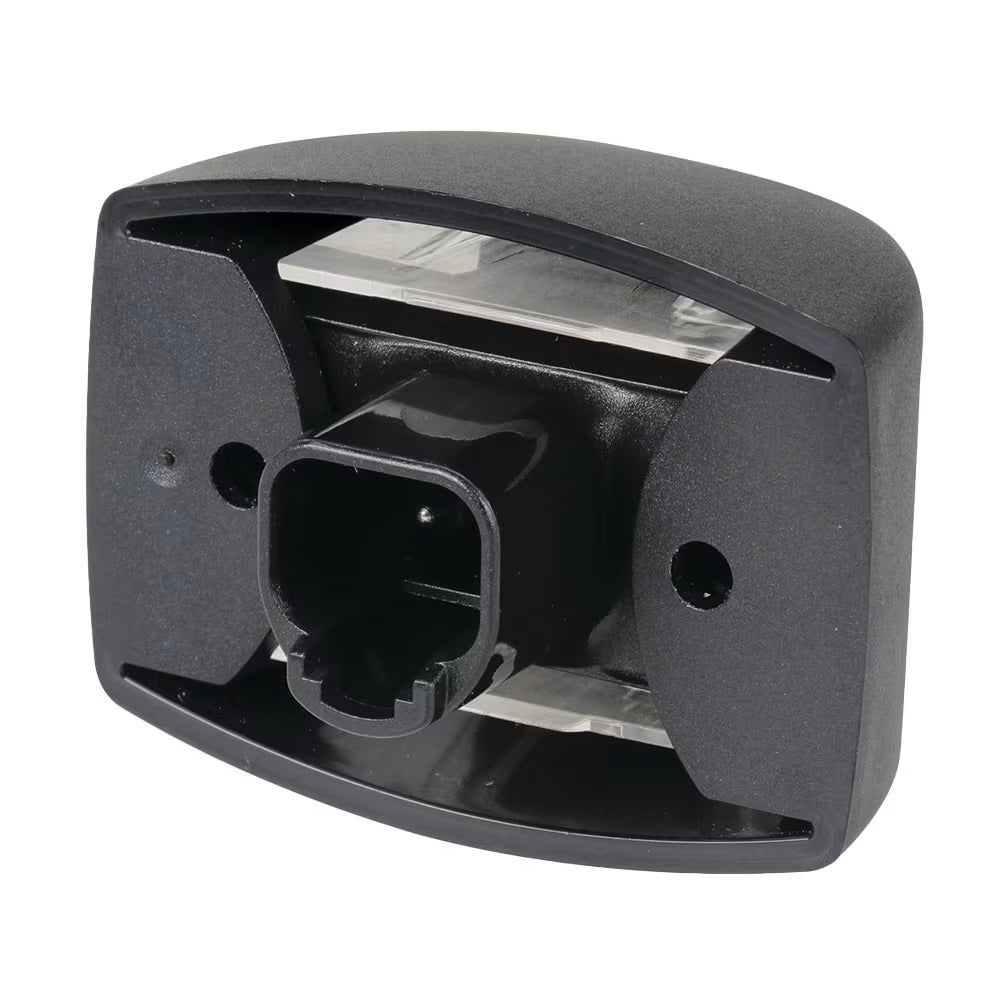

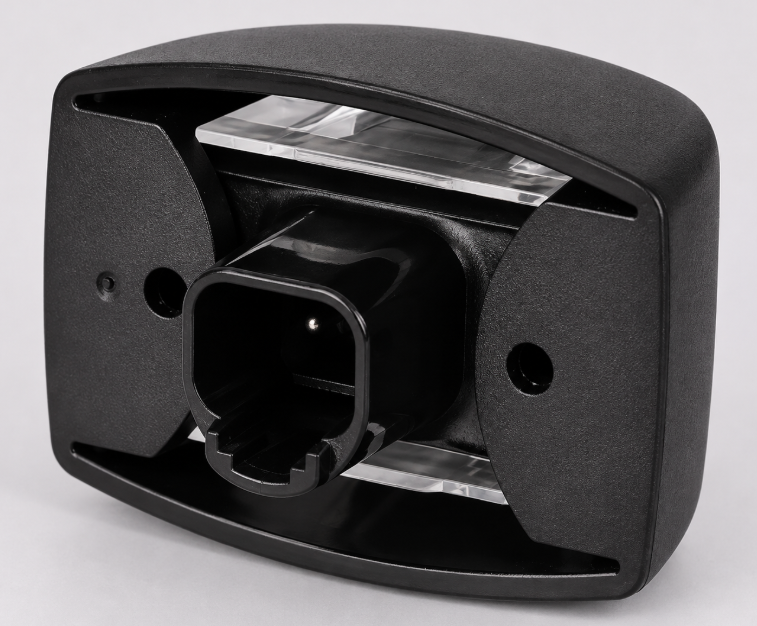

Deutsch DT Connector

The integrated Deutsch DT interface provides a durable plug-in connection suited to automotive and heavy-equipment wiring. It allows the lamp to be removed or replaced without cutting and rejoining the wiring harness, reducing service time and helping maintain a clean installation.

A compatible 2-pole DT mating plug, wedge lock and terminals may be required if they are not already installed on the vehicle harness.

RFCommSafe™ Technology

Hella’s RFCommSafe™ design is intended to minimise electrical interference with sensitive radio and electronic equipment. This is particularly important in remote-area, mining, emergency-service and commercial fleet applications where reliable UHF, VHF or other radio communication is essential.

Efficient LED Operation

With power consumption below 1 watt, the lamp places minimal demand on the vehicle’s electrical system. Its integrated LED construction also removes the need for routine globe replacement, reducing maintenance requirements and vehicle downtime.

The lamp is replaced as a complete unit if damaged, as the LEDs and electronics are sealed within the assembly.

Typical Applications

The Hella DuraLED Heavy-Duty Marker Lamp is suitable for:

• Trucks and prime movers
• Trailers and semi-trailers
• Tankers and transport equipment
• Mining and mine-spec vehicles
• Agricultural machinery
• Construction equipment
• Service trucks
• Emergency and fleet vehicles
• Caravans and heavy-duty camper trailers
• Custom commercial vehicle bodies
• Equipment exposed to frequent wash-down procedures

Technical Specifications

• Brand: Hella
• Product range: DuraLED
• Product type: Heavy-duty LED side-marker lamp
• Illumination: Red and amber
• Optic appearance: Clear when switched off
• Operating voltage: 9–33V DC
• System compatibility: 12V and 24V
• Power consumption: Less than 1W
• Mounting: Horizontal surface mount
• Connection: 2-pole Deutsch DT connector
• Lens material: Grilamid®
• Housing material: Nylon
• Ingress protection: IP6K7 and IP6K9K
• Electrical protection: Reverse-polarity protection
• Technology: LED and RFCommSafe™
• Quantity supplied: One lamp unless otherwise stated

Installation Information

Mount the lamp horizontally on a clean, flat and structurally secure surface. Its orientation is important because the red and amber sections must face the correct directions for the intended application.

Connect the lamp using the correctly keyed 2-pole Deutsch DT mating connector. Use terminals suited to the harness cable size and crimp them with compatible tooling. Confirm that all connector seals, cavity plugs and locking components are correctly fitted before use.

Please Note

The mating Deutsch DT plug and wiring harness may be sold separately unless specifically shown or stated as included. Confirm the lamp’s Hella part number, illumination arrangement, dimensions and installation orientation before ordering.

Marker-light positioning and colour are regulated according to vehicle type and mounting location. Installation must comply with applicable Australian Design Rules and local vehicle-lighting requirements. Hella product specifications confirm the horizontal surface mounting, 9–33V Multivolt operation, Grilamid® lens and IP6K7/IP6K9K protection ratings.
