Hella Close-Range Work Light – 9–33V

The HELLA RokLUME 280N Close-Range LED Work Light is a professional heavy-duty lighting solution designed to provide broad, even illumination around vehicles, machinery and mobile equipment. Its wide flood-beam pattern distributes light across the immediate working area, making it ideal for loading, reversing, earthmoving, maintenance and nighttime site operations.

Operating across a wide 9–33V DC range, the RokLUME is suitable for both 12V and 24V electrical systems. Its rugged construction, powerful measured light output and comprehensive environmental sealing make it particularly well suited to mining, transport, agriculture, construction and other demanding applications.

Key Features

• Heavy-duty HELLA RokLUME LED work light
• Wide close-range flood-beam pattern
• Approximately 4,300 measured lumens
• Broad and even work-area illumination
• Wide 9–33V DC operating range
• Suitable for 12V and 24V vehicles
• Approximately 56W power consumption
• Rugged die-cast aluminium housing
• Hard-coated impact-resistant lens
• Heavy-duty stainless-steel mounting bracket
• Resistant to vibration and mechanical shock
• Fully sealed against dust and water
• Resistant to high-pressure and steam-jet cleaning
• Reverse-polarity protection
• Electromagnetic compatibility for vehicle installations
• Designed for commercial, mining and industrial applications

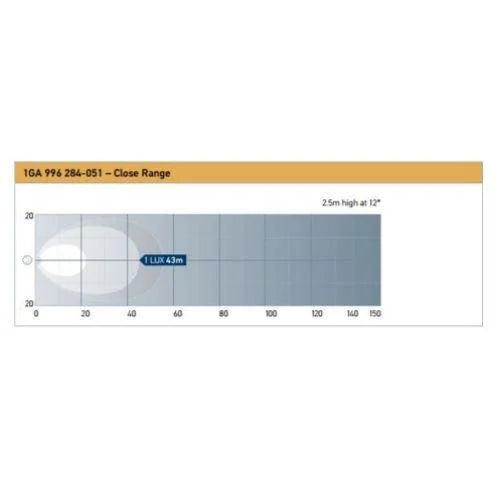

Close-Range Flood Beam

The RokLUME’s close-range optical system produces a wide field of light around the vehicle or machine rather than concentrating the output into a narrow long-distance beam.

This broad and even distribution helps illuminate:

• The ground directly around machinery
• Loading and unloading areas
• Vehicle reversing zones
• Excavator and loader working areas
• Agricultural implements
• Maintenance and service areas
• Vehicle sides and rear work zones

The smooth beam pattern helps reduce distracting bright spots and dark areas, improving operator visibility and comfort during extended nighttime operations.

Powerful LED Output

Producing approximately 4,300 measured lumens, the RokLUME delivers strong usable illumination from a compact, heavy-duty housing. The efficient LED light source provides immediate full output without requiring a warm-up period.

Its bright white light improves contrast and makes it easier to identify obstacles, equipment, surface changes and personnel within the illuminated area.

Multi-Voltage Compatibility

The 9–33V DC input range allows the lamp to operate on a variety of vehicle and machinery electrical systems, including:

• 12V passenger and light-commercial vehicles
• 12V four-wheel drives and service vehicles
• 24V trucks and transport equipment
• Mining and earthmoving machinery
• Agricultural and construction equipment

Integrated electronics help maintain consistent lighting performance while the vehicle’s supply voltage fluctuates during normal operation.

Heavy-Duty Construction

The RokLUME is designed for demanding operating environments where ordinary work lights may be affected by vibration, dust, moisture or impact.

Its durable die-cast aluminium housing provides excellent strength and heat dissipation, while the hard-coated lens helps protect the LED and optical components against stones, debris and physical damage. A heavy-duty stainless-steel mounting bracket provides secure support and allows the lamp angle to be adjusted for the required work area.

Environmental Protection

The sealed housing provides high-level protection against:

• Dust and fine particles
• Rain and water spray
• Prolonged water exposure
• High-pressure cleaning
• Steam-jet cleaning
• Mud and road contaminants

This protection makes the RokLUME suitable for external installation on machinery and vehicles operating in mines, quarries, farms, construction sites and remote locations.

Typical Applications

• Mining and earthmoving equipment
• Excavators and loaders
• Agricultural tractors and machinery
• Trucks and commercial vehicles
• Water carts and service trucks
• Forklifts and material-handling equipment
• Construction machinery
• Waste-management vehicles
• Emergency and recovery vehicles
• Four-wheel drives and utilities
• Marine and industrial equipment
• Reversing and loading-area illumination
• Nighttime maintenance operations

Technical Specifications

• Brand: HELLA
• Series: RokLUME 280N
• Product type: Heavy-duty LED work light
• Beam pattern: Close-range flood beam
• Operating voltage: 9–33V DC
• System compatibility: 12V and 24V
• Measured light output: Approximately 4,300 lumens
• Power consumption: Approximately 56W
• Light source: LED
• Housing: Die-cast aluminium
• Lens: Hard-coated polycarbonate
• Mounting bracket: Heavy-duty stainless steel
• Electrical protection: Reverse-polarity protection
• Environmental protection: IP6K8 and IP6K9K
• Mounting position: Suitable for upright or pendant mounting, subject to installation requirements
• Part number: 1GA 995 606-501

Installation Information

Mount the lamp to a strong structural surface using the supplied or compatible mounting hardware. Aim the close-range beam toward the required working area and tighten all fasteners securely once the correct angle has been selected.

The wiring, relay, switch and circuit protection must be appropriately rated for the lamp’s current draw. Route the cable away from exhaust components, sharp edges, moving parts and areas where it may be crushed or damaged.

Please Note

This product produces a close-range work beam and is not designed to replace an approved road-going headlamp, high beam or long-range driving light. Work lights must not be operated on public roads where they could dazzle other road users.

Confirm the part number, connector, cable length and mounting requirements before ordering. Professional installation by a qualified auto electrician is recommended. Product details should be verified against the applicable HELLA documentation for part number 1GA 995 606-501.
