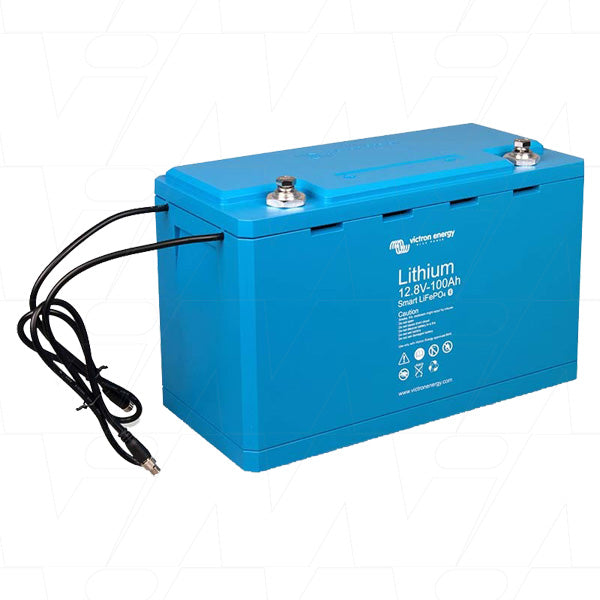

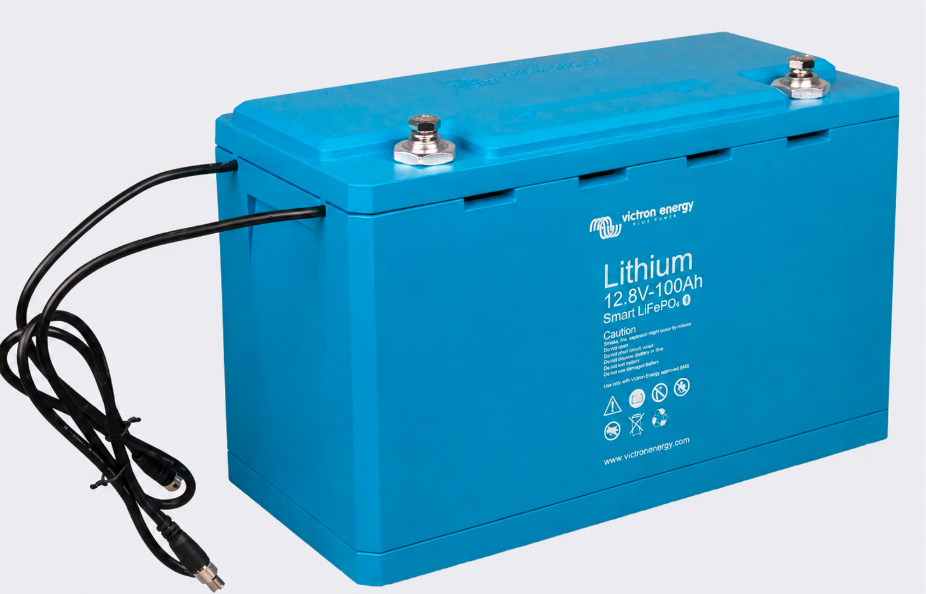

Victron LiFePO4 Smart Battery – 12.8V 100Ah

The Victron Energy Lithium Battery Smart 12.8V 100Ah is a high-performance lithium iron phosphate battery designed for dependable energy storage in marine, vehicle, off-grid and backup-power systems. With a nominal stored energy capacity of approximately 1.28kWh, it provides a lightweight, efficient and long-lasting alternative to traditional lead-acid batteries.

Built-in Bluetooth allows battery voltage, temperature and individual cell-voltage information to be viewed through the free VictronConnect app. The battery also features integrated cell balancing and dedicated communication connections for a compatible external Victron BMS.

Key Features

• Nominal voltage: 12.8V
• Rated capacity: 100Ah
• Nominal stored energy: Approximately 1.28kWh
• Lithium iron phosphate chemistry
• Built-in Bluetooth monitoring
• Compatible with the VictronConnect app
• Integrated cell balancing
• Individual cell-voltage and temperature monitoring
• High usable capacity
• Low self-discharge
• Lightweight compared with an equivalent lead-acid battery bank
• Supports compatible series and parallel configurations
• Designed for use with an approved external Victron BMS
• Suitable for deep-cycle energy-storage applications

Bluetooth Monitoring

Through VictronConnect, users can view:

• Overall battery voltage
• Individual cell voltages
• Battery temperature
• Cell-balancing status
• Battery alarms and diagnostic information

Bluetooth is provided for monitoring and diagnostics. It does not replace the required external BMS.

External BMS Required

This battery contains internal cell monitoring and balancing electronics but does not contain a complete standalone BMS capable of directly disconnecting chargers and loads.

It must be connected to a compatible Victron BMS, which can respond to battery signals and control the wider system if:

• A cell voltage becomes too high
• A cell voltage becomes too low
• Battery temperature moves outside permitted limits

The correct BMS depends on the system voltage, charging equipment, inverter and installation design.

Typical Applications

Ideal for:

• Caravans and camper trailers
• Motorhomes
• Marine systems
• Four-wheel drives
• Food trucks and mobile businesses
• Off-grid solar installations
• Backup-power systems
• Commercial and service vehicles

Technical Specifications

• Brand: Victron Energy
• Battery type: Lithium Battery Smart
• Chemistry: LiFePO₄
• Nominal voltage: 12.8V
• Nominal capacity: 100Ah
• Nominal energy: 1,280Wh
• Bluetooth: Built in
• Cell balancing: Integrated
• BMS: Compatible external BMS required
• Application: Deep-cycle energy storage

Please Note

This battery must not be installed or operated without a compatible external Victron BMS and correctly configured charging equipment. It is not a direct drop-in replacement for every lead-acid battery system.

Appropriately rated cables, fuses, isolation and battery restraint are required. Confirm compatibility before connecting batteries in series or parallel. Professional installation is strongly recommended.
