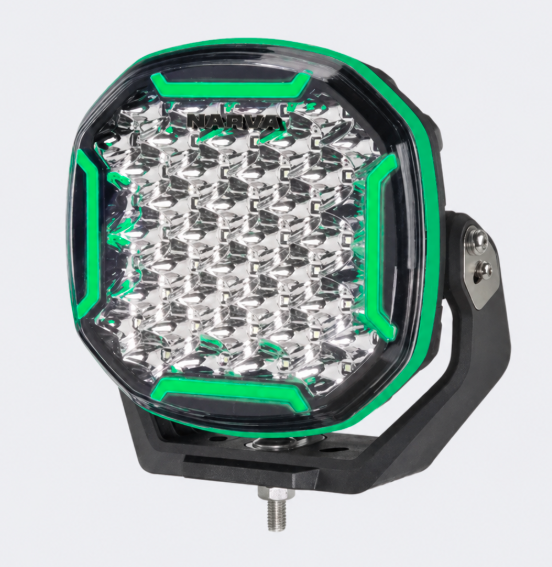

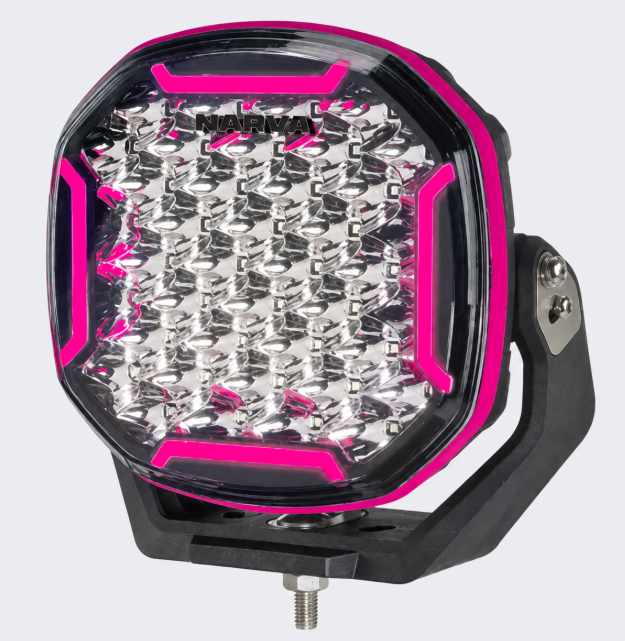

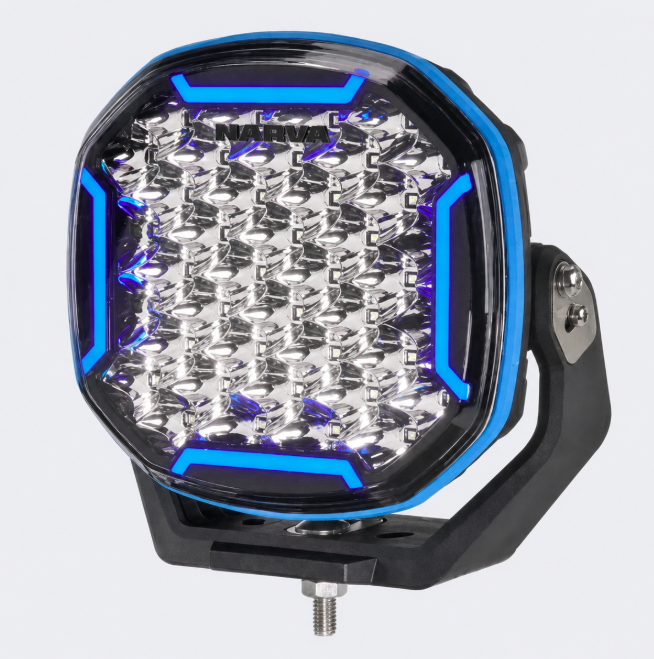

Narva EX2 9″ RGB Driving Light – Single

The Narva EX2-R 9-Inch LED Driving Light is a high-performance hybrid-beam driving lamp designed to deliver outstanding distance, beam width and forward visibility in demanding Australian conditions. Combining powerful white driving-light output with an integrated RGB-enabled front position light, the EX2-R provides both serious nighttime performance and a distinctive customised appearance.

Producing approximately 9,700 effective lumens from a single lamp, the EX2-R combines spot and spread-beam optics to illuminate the road ahead while also improving visibility along the road shoulders. Its hybrid beam reaches approximately 700 metres at 1 lux, making it suitable for four-wheel drives, utilities, trucks and commercial vehicles regularly operated on highways, country roads, remote tracks and unlit worksites.

This listing is for one individual driving light only.

Key Features

• Single 9-inch Narva EX2-R LED driving light
• Powerful hybrid spot and spread beam
• Approximately 9,700 effective lumens per lamp
• Beam distance of approximately 700 metres at 1 lux
• RGB-enabled front position light
• Up to 48 position-light colours with a compatible controller
• ADR-approved white position-light option
• Suitable for compatible 12V and 24V vehicles
• Wide 9–33V DC operating range
• Reverse-polarity protection
• Rugged die-cast aluminium housing
• Hard-coated polycarbonate lens
• IP68 and IP69K-rated environmental protection
• Resistant to dust, water and high-pressure cleaning
• Heavy-duty mounting system
• Replaceable and interchangeable trim design
• Designed for large four-wheel drives, utilities and transport vehicles

Powerful Hybrid Beam

The EX2-R uses a combination of precision spot and spread optics to create a balanced hybrid beam. The concentrated centre section projects light far down the road, while the spread component distributes light across the surrounding area.

This combination provides the driver with:

• Long-range forward visibility
• Improved roadside illumination
• Greater awareness of wildlife and obstacles
• Better visibility through corners and along road edges
• A smoother transition between near and distant lighting

At 1 lux, the beam reaches approximately 700 metres, providing the distance required for high-speed country-road driving and remote-area travel.

9,700 Effective Lumens

Unlike theoretical or raw lumen figures, effective lumens represent the usable light produced after optical and thermal losses. The EX2-R produces approximately 9,700 effective lumens per lamp, delivering powerful illumination from a single 9-inch housing.

For customers replacing a damaged lamp or creating a custom lighting arrangement, this single-light option provides the same lighting performance as one lamp supplied in the complete Narva EX2-R driving-light kit.

RGB-Enabled Position Light

The integrated front position light is RGB enabled and can display up to 48 colour options when connected to a compatible Narva RGB Bluetooth controller and correctly configured system.

The position light can be used to customise the appearance of the vehicle for off-road, recreational, promotional or display purposes. For public-road operation, the ADR-approved white position-light setting must be selected and the lamp must be installed and operated in accordance with applicable road regulations.

A compatible RGB controller, harness or additional components may be required to access the colour-selection functions.

Built for Harsh Conditions

The EX2-R is constructed for vehicles exposed to demanding environments. Its durable die-cast aluminium housing assists with strength and heat dissipation, while the hard-coated polycarbonate lens helps resist damage from stones, insects, dust and road debris.

Dual IP68 and IP69K ratings provide protection against dust, water immersion and high-pressure cleaning. This makes the lamp suitable for off-road, mining, agricultural, transport and commercial applications where equipment may be exposed to mud, water, vibration and severe weather.

Typical Applications

• Four-wheel drives and touring vehicles
• Utes and large SUVs
• Trucks and transport vehicles
• Mining and service vehicles
• Agricultural machinery
• Emergency-support vehicles
• Commercial fleets
• Remote-area touring
• Highway and country-road driving
• Off-road and recreational vehicles
• Replacement of a damaged EX2-R lamp
• Custom single-light installations

Technical Specifications

• Brand: Narva
• Series: EX2-R
• Product type: RGB-enabled LED driving light
• Quantity: One light
• Diameter: 9 inches
• Input-voltage range: 9–33V DC
• Vehicle compatibility: 12V and 24V systems
• Effective output: Approximately 9,700 lumens
• Published wattage: 200W
• Current draw: Approximately 9.6A at 12V
• Beam type: Hybrid spot and spread beam
• Beam distance: Approximately 700m at 1 lux
• Driving-light colour temperature: Approximately 5700K
• Position light: RGB enabled
• Available RGB colours: Up to 48 with compatible controller
• Ingress-protection rating: IP68 and IP69K
• Operating temperature: Approximately −40°C to +60°C
• Housing material: Die-cast aluminium
• Lens material: Hard-coated polycarbonate
• Design registration: 202113109

Package Contents

• One Narva EX2-R 9-inch RGB-enabled LED driving light

This is a single-item listing, not the complete Narva 72184 twin-light kit. Unless specifically stated, the RGB controller, wiring harness, second lamp, switches, lens protector, alternative trims and other kit components are not included.

Please Note

The RGB position-light function requires a compatible controller and wiring system. Coloured position lights may not be legal for use on public roads. White must be selected where required, and installation must comply with applicable Australian Design Rules and state or territory regulations.

The vehicle’s wiring, alternator, relays, switches and circuit protection must be suitable for the lamp’s electrical load. Professional installation by a qualified auto electrician is recommended. Specifications are based on Narva’s official EX2-R product information.
