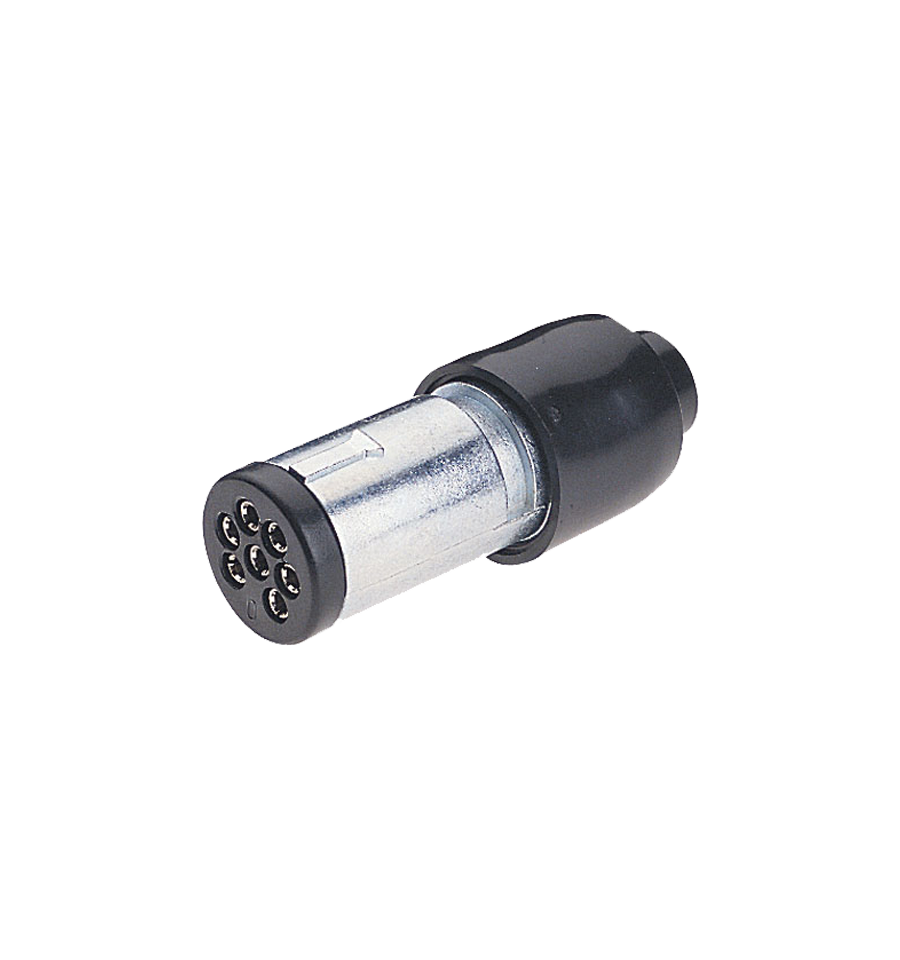

Small Round Metal 7-Pin Trailer Connector

The Small Round Metal 7-Pin Trailer Connector provides a strong and dependable electrical connection between a tow vehicle and compatible trailer, caravan or equipment wiring. Its seven-pin configuration allows multiple lighting and auxiliary circuits to pass through one compact connection point, helping support the safe operation of essential trailer functions.

Featuring a durable metal housing and a compact round design, this connector is suitable for automotive, commercial, agricultural and general towing applications. It is ideal for new trailer wiring, replacing a worn or damaged connector, or upgrading from a lightweight plastic plug in demanding environments.

Key Features

• Small round 7-pin trailer connector
• Durable metal housing
• Compact, low-profile design
• Provides seven separate electrical circuits
• Secure plug-and-socket connection
• Internal terminals for individual wire connections
• Helps protect wiring terminations
• Cable-entry section supports neat installation
• Suitable for compatible 12V trailer systems
• Ideal for repairs, replacements and new wiring
• Suitable for recreational and commercial towing
• Strong construction for demanding environments

Seven-Pin Electrical Connection

The seven-pin arrangement allows the connector to carry the main electrical circuits commonly required between a tow vehicle and trailer. Depending on the vehicle, trailer and wiring standard, these may include:

• Left-hand direction indicator
• Right-hand direction indicator
• Stop lamps
• Tail, clearance and number-plate lamps
• Electric trailer brakes
• Reverse or auxiliary circuit
• Earth return

The exact function assigned to each pin must be confirmed before installation. Wire colours should not be relied upon without testing because wiring configurations can vary between vehicles, trailers and previous installations.

Durable Metal Construction

The metal housing provides increased strength and impact resistance, making the connector suitable for applications where it may be exposed to frequent handling, vibration and general wear.

This construction is particularly useful for:

• Work trailers
• Commercial towing
• Agricultural equipment
• Boat trailers
• Heavy-duty utility trailers
• Machinery and plant trailers

The housing also provides a neat and professional appearance when correctly assembled.

Compact Round Design

The small round format is commonly used on Australian vehicles and trailers where installation space is limited. Its compact size allows it to be mounted or stored without the bulk associated with larger trailer-connector systems.

Before ordering, compare the connector’s size, pin arrangement and mating profile with the existing plug or socket. Several different seven-pin connector styles are available and are not automatically interchangeable.

Typical Applications

• Box and utility trailers
• Caravans and camper trailers
• Boat and jet-ski trailers
• Horse floats
• Machinery trailers
• Plant and equipment trailers
• Agricultural implements
• Commercial fleets
• Four-wheel drives and touring vehicles
• Trailer repairs and restorations
• Custom towing installations

Technical Specifications

• Product type: Trailer electrical connector
• Connector style: Small round
• Number of pins: Seven
• Housing material: Metal
• Electrical application: Vehicle-to-trailer connection
• Typical operating voltage: 12V DC
• Wiring method: Internal terminal connection
• Installation type: Cable mounted or vehicle mounted, depending on the selected component
• Application: Trailer lighting, braking and auxiliary circuits

Installation Information

Strip each wire carefully and connect it to the correct numbered terminal. Ensure no exposed conductor strands can contact neighbouring terminals or the metal housing.

The cable should be securely clamped at the entry point so pulling force is not transferred directly to the electrical terminals. After assembly, confirm that the connector closes correctly and that the cable cannot rotate or pull free.

Before towing, test every connected function, including:

• Left indicator
• Right indicator
• Brake lamps
• Tail lamps
• Clearance lamps
• Electric brakes, where fitted
• Reverse or auxiliary circuit
• Earth continuity

Please Note

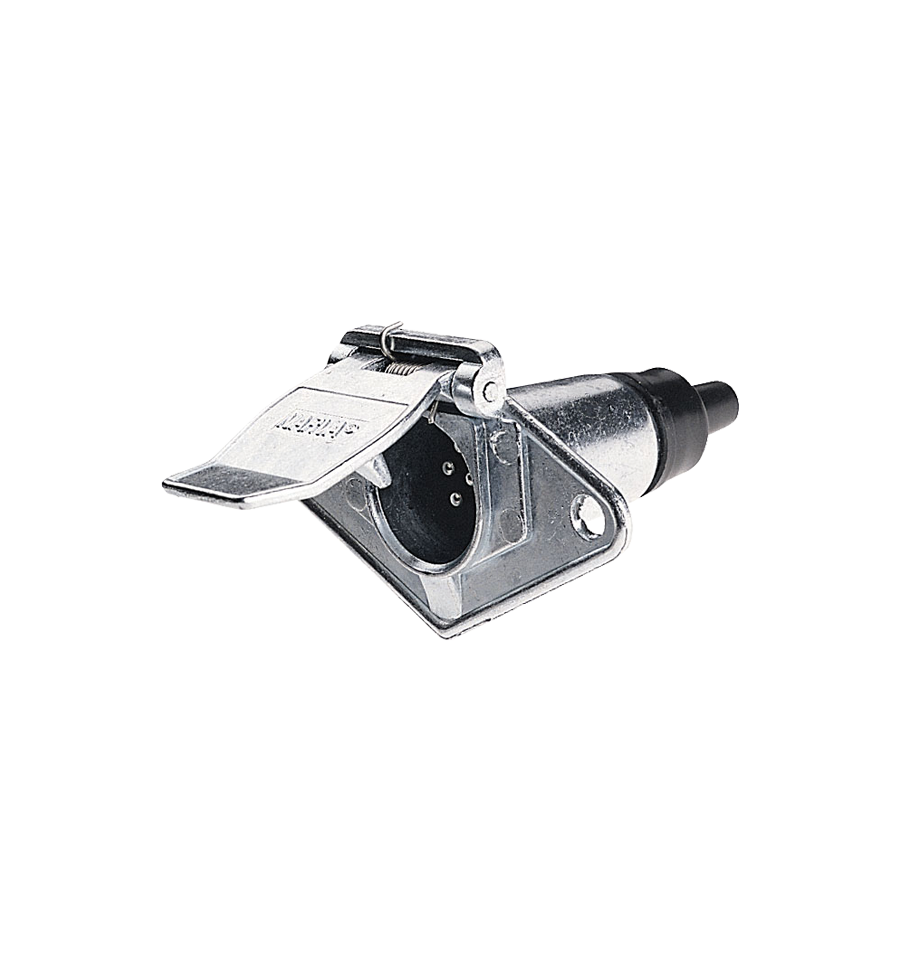

This description may apply to either a plug or socket, depending on the selected product. Confirm the required connector type before ordering.

“Small round 7-pin” refers to a particular connector format. It is not automatically compatible with large round, flat seven-pin, European 13-pin or other trailer connections.

Always follow the terminal numbers and wiring diagram supplied with the connector. Do not assume wire functions based only on insulation colour. A correctly rated fuse must protect any auxiliary power circuit, and professional installation by a qualified auto electrician is recommended for electric-brake or high-current wiring.
