Victron MEGA Fuse – 80V

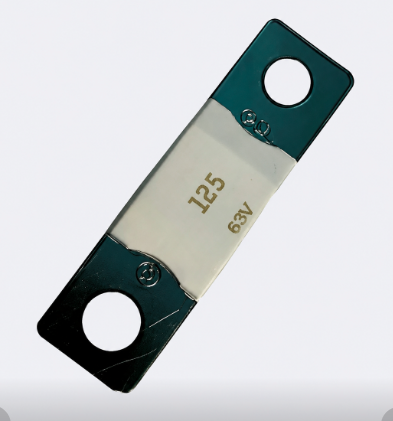

The Victron Energy MEGA-Fuse 80V is a high-current DC fuse designed to provide overcurrent and short-circuit protection in compatible battery, inverter, charger and DC distribution systems. Installed in a suitable MEGA-fuse holder, it helps protect electrical cables and connected equipment by interrupting the circuit when current exceeds the fuse’s rated capacity.

Its 80V DC voltage rating makes it particularly suitable for higher-voltage battery installations, including many 48V systems where adequate DC voltage clearance is essential. The fuse is available in several amperage ratings, allowing the protection level to be matched to the cable capacity, connected equipment and expected system load.

The bolt-down MEGA format creates a secure, low-resistance connection for high-current applications, making it suitable for Victron power systems installed in motorhomes, marine vessels, commercial vehicles, off-grid properties and energy-storage applications.

Key Features

• Genuine Victron Energy MEGA fuse
• Rated for systems up to 80V DC
• Suitable for many 12V, 24V and 48V DC installations
• Provides overcurrent and short-circuit protection
• Helps protect cables, equipment and battery circuits
• Bolt-down MEGA-fuse format
• Secure connection for high-current circuits
• Compatible with suitable MEGA-fuse holders and distribution systems
• Available in multiple amperage ratings
• Clearly marked current rating
• Replaceable sacrificial protection device
• Suitable for battery, inverter and DC distribution applications
• Compact design for professional power-system installations

Protection for High-Current DC Systems

Battery banks can supply extremely high fault currents. If a cable is damaged, incorrectly connected or short-circuited, the resulting current can generate dangerous heat and may damage wiring or surrounding equipment.

The MEGA fuse is installed in series with the protected positive conductor. Under normal operating conditions, current passes through the fuse. If a serious overcurrent occurs, the fuse element melts and opens the circuit, helping prevent the fault current from continuing through the protected cable.

Once operated, the fuse cannot be reset and must be replaced with a new fuse of the correct voltage and amperage rating.

Suitable for Higher-Voltage Installations

The fuse’s 80V DC rating makes it suitable for many nominal 48V battery systems, where the actual operating or charging voltage can rise significantly above the nominal battery voltage.

A fuse must have a DC voltage rating equal to or higher than the maximum possible voltage of the circuit. Using a fuse with an insufficient voltage rating may prevent it from safely interrupting a fault.

The 80V rating is the fuse’s maximum circuit-voltage rating—it does not mean the fuse supplies, converts or regulates voltage.

Bolt-Down MEGA Design

The MEGA fuse uses two bolted connection points to create a secure electrical and mechanical interface with a compatible fuse holder. This design is widely used in automotive, marine and renewable-energy installations carrying substantial DC current.

Correctly tightened connections help minimise resistance, voltage drop and unwanted heat generation. Loose, dirty or incorrectly assembled terminals may overheat even when the circuit current remains below the fuse rating.

Typical Applications

The Victron 80V MEGA Fuse is suitable for protecting circuits associated with:

• Battery banks
• Inverters
• Inverter/chargers
• DC-to-DC converters
• Battery chargers
• Solar charge controllers
• DC distribution systems
• Victron Lynx installations designed for MEGA fuses
• Off-grid solar systems
• Marine electrical systems
• Caravans and motorhomes
• Commercial and service vehicles
• Backup-power systems
• Energy-storage installations

Selecting the Correct Amperage

The fuse amperage must be selected to protect the cable while allowing the equipment to operate normally. The correct rating depends on:

• Maximum continuous operating current
• Expected temporary surge current
• Cable cross-sectional area
• Cable length
• Cable insulation temperature rating
• Installation method and ambient temperature
• Equipment manufacturer’s requirements
• Fuse-holder rating
• Applicable electrical standards

The fuse should generally be rated above the circuit’s expected normal current but below the maximum safe current-carrying capacity of the protected cable. Never increase the fuse rating simply to prevent repeated operation without first identifying the cause.

Technical Details

• Brand: Victron Energy
• Product type: High-current DC fuse
• Fuse format: MEGA bolt-down fuse
• Maximum voltage: 80V DC
• Current rating: Selected model dependent
• Resettable: No
• Installation: Compatible MEGA-fuse holder
• Primary purpose: Cable and circuit overcurrent protection
• Quantity supplied: One fuse unless otherwise stated

Installation Information

The fuse should be installed in the positive conductor as close as practical to the battery or energy source, subject to the system design and applicable installation requirements. This limits the length of unfused cable exposed to a possible short circuit.

Before installation:

1. Isolate all power sources.
2. Verify that the circuit is de-energised.
3. Confirm the fuse voltage and current ratings.
4. Inspect the holder, studs and contact surfaces.
5. Fit the fuse without bending or placing mechanical stress on it.
6. Tighten the fasteners to the fuse-holder manufacturer’s specified torque.
7. Install the holder’s protective cover before energising the system.

High-current DC installations should be completed by a suitably qualified technician.

Please Note

This listing covers the Victron 80V MEGA-Fuse range. The required amperage must be selected separately. Confirm the fuse rating before ordering, as different current ratings are not interchangeable simply because they share the same physical format.

The fuse holder is not included unless specifically stated. Always replace a blown fuse with the same approved voltage and current rating after the underlying fault has been located and corrected. Never bridge, bypass or repair a blown fuse.
