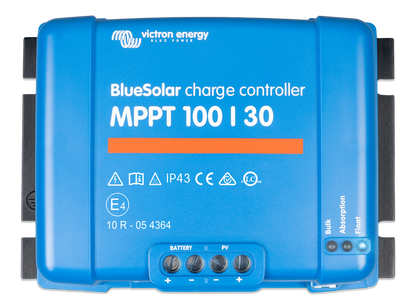

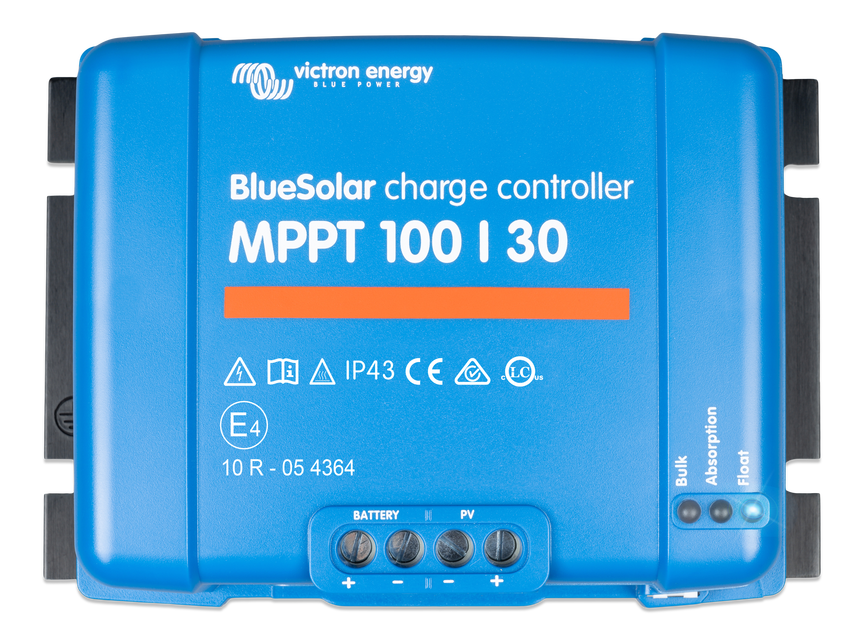

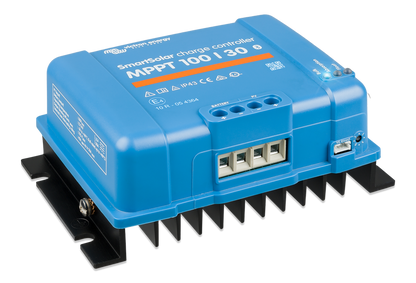

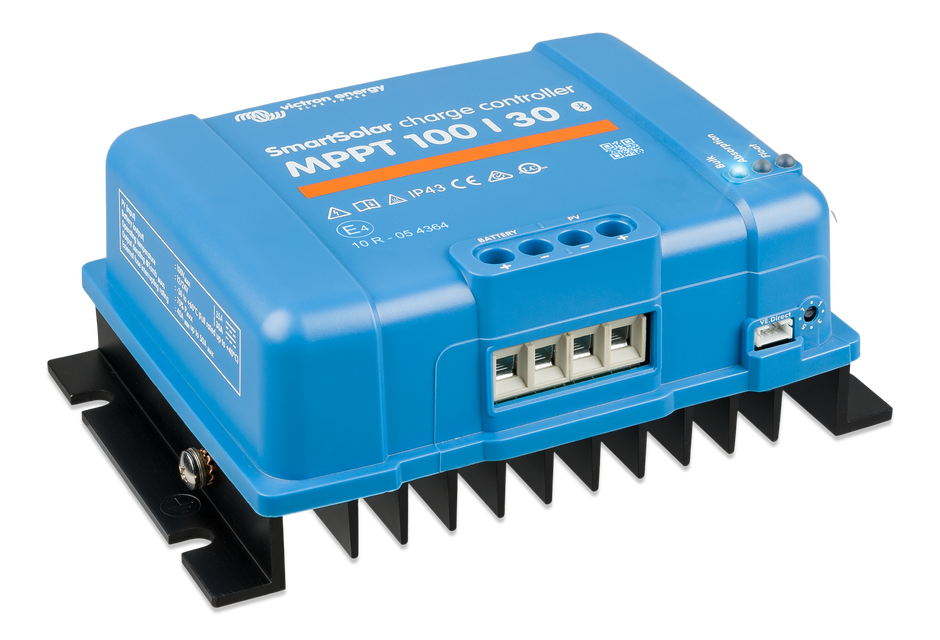

Victron SmartSolar MPPT 100/30

The Victron SmartSolar MPPT 100/30 is an intelligent solar charge controller designed to efficiently convert energy from solar panels into controlled charging power for a 12V or 24V battery bank. Its advanced Maximum Power Point Tracking technology continually adjusts the solar input to harvest as much available energy as possible, including during cloudy or changing light conditions.

With built-in Bluetooth, charging performance and controller settings can be accessed through the free VictronConnect app using a compatible smartphone or tablet.

Key Features

• Maximum PV open-circuit voltage of 100V
• Maximum battery-charging current of 30A
• Automatic 12V or 24V battery-voltage detection
• Maximum recommended solar capacity of approximately 440W at 12V or 880W at 24V
• Built-in Bluetooth connectivity
• Compatible with the VictronConnect app
• Advanced MPPT solar tracking
• Programmable charging profiles
• Suitable for compatible lead-acid and lithium batteries
• VE.Direct communication port
• Up to approximately 98% peak efficiency
• Electronic protection against common faults
• Natural convection cooling with no fan

Smart Battery Charging

The controller regulates solar energy through a multi-stage charging process, which may include bulk, absorption, float and storage stages. Charging parameters can be configured to suit the connected battery, helping support efficient charging and long battery life.

Bluetooth Monitoring

Using VictronConnect, users can:

• View solar voltage and power
• Monitor battery voltage and charging current
• Review daily and historical solar yield
• Select or customise battery profiles
• Check warnings and controller status
• Perform supported firmware updates

Typical Applications

Ideal for:

• Caravans and camper trailers
• Motorhomes
• Marine systems
• Four-wheel drives
• Off-grid solar systems
• Remote equipment
• Auxiliary battery banks
• Backup-power installations

Technical Specifications

• Brand: Victron Energy
• Model: SmartSolar MPPT 100/30
• Battery voltage: 12V or 24V
• Maximum PV open-circuit voltage: 100V
• Maximum charge current: 30A
• Maximum PV power: 440W at 12V / 880W at 24V
• Bluetooth: Built in
• Communication: VE.Direct
• Peak efficiency: Up to approximately 98%
• Cooling: Natural convection

Please Note

The solar array must be configured so its maximum open-circuit voltage—including increases caused by cold weather—never exceeds 100V. Solar panels, battery cables, fuses and isolators are sold separately unless stated otherwise.

Correct cable sizing, circuit protection and battery-profile selection are essential. Professional installation is recommended.
