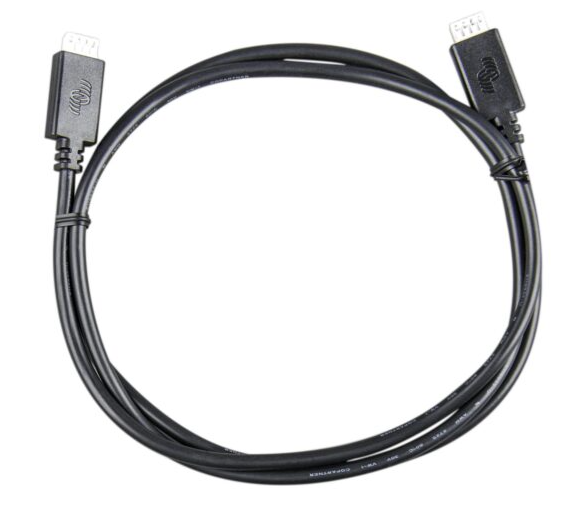

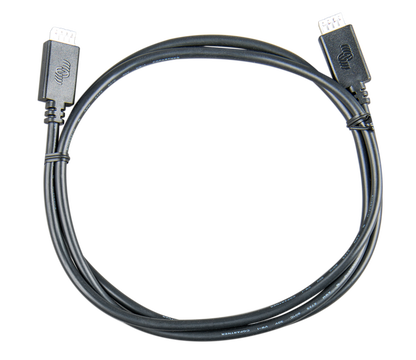

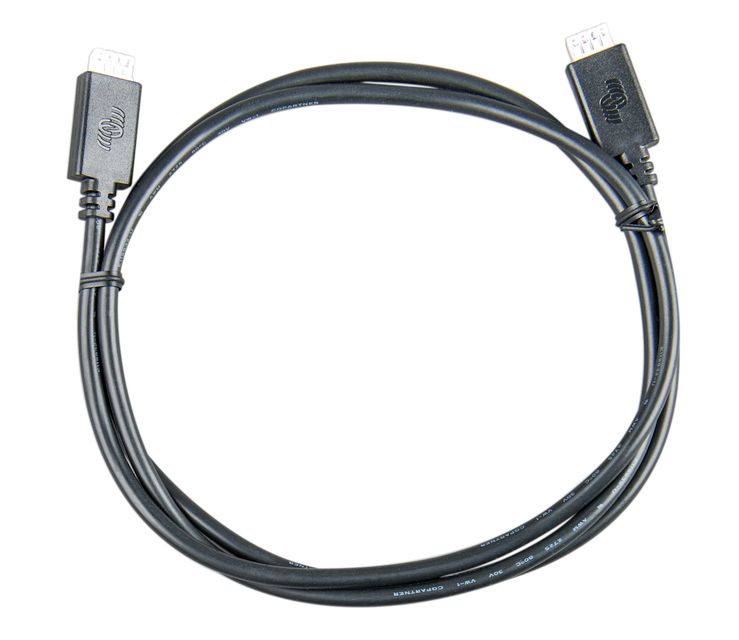

Victron VE.Direct Cable

The Victron Energy VE.Direct Cable is a genuine Victron communication lead designed to connect compatible VE.Direct-equipped devices within a Victron power system. It provides a reliable wired data connection between equipment such as battery monitors, solar charge controllers, inverters, control panels and GX monitoring devices.

Once connected, the cable allows supported operating information to be exchanged between compatible products. Depending on the connected equipment, this may include battery voltage, current, state of charge, solar yield, charging status, inverter operation, alarms and historical performance information.

The cable is supplied pre-terminated with Victron’s dedicated VE.Direct connectors, providing a simple plug-in installation without requiring terminals to be crimped or communication wires to be manually joined.

Key Features

• Genuine Victron Energy communication cable
• Designed specifically for the VE.Direct interface
• Connects compatible Victron devices
• Pre-terminated connectors at both ends
• Simple plug-in installation
• Enables wired transfer of operating and monitoring data
• Supports compatible battery, solar and inverter information
• Suitable for connection to Victron GX monitoring equipment
• Useful for local display and system-integration applications
• Available in multiple cable lengths
• Straight and right-angle connector versions may be available
• Suitable for permanent Victron system installations
• Provides a clean and professional communication connection

What Is VE.Direct?

VE.Direct is a Victron communication interface used on many smaller Victron products. It allows compatible equipment to share operational data with displays, monitoring devices and other supported communication accessories.

A VE.Direct connection may be used to link a compatible product to:

• A Victron GX device
• A VE.Direct display or control panel
• Another compatible Victron accessory
• A computer using a separate VE.Direct-to-USB interface
• A mobile device using a separate VE.Direct Bluetooth Smart dongle

The exact functionality depends on the connected devices and the ports available.

Typical Compatible Equipment

Depending on the individual model, the cable may be suitable for selected:

• Victron SmartSolar MPPT charge controllers
• Victron BlueSolar MPPT charge controllers
• Victron BMV battery monitors
• Victron SmartShunt battery monitors
• Victron Phoenix inverters with VE.Direct
• Victron MPPT Control displays
• Victron Cerbo GX
• Victron Cerbo-S GX
• Victron Color Control GX
• Victron Venus GX
• Other Victron devices equipped with a compatible VE.Direct port

Not every model within these product families includes VE.Direct. Confirm that both devices have the correct interface before ordering.

GX System Integration

A VE.Direct cable can connect a supported solar controller, battery monitor or inverter to an available VE.Direct port on a Victron GX device.

Once connected and configured, the GX device can display supported information from that product and incorporate it into the overall system overview. If the GX device is connected to the internet and registered with the Victron Remote Management portal, supported data may also be available for remote monitoring.

The number of direct VE.Direct connections is limited by the available ports on the GX device. Additional products may require compatible VE.Direct-to-USB interfaces and available USB capacity.

Reliable Wired Communication

A direct cable connection provides consistent communication without depending on wireless range, pairing or nearby mobile devices. This makes it suitable for permanent installations where system data needs to remain available to a GX device or fixed display.

The cable should be routed separately from high-current conductors where practical and protected against heat, abrasion, sharp edges and moving components.

Available Cable Lengths

Victron VE.Direct cables are available in several lengths to suit different equipment layouts. Common options may include:

• 0.3 metres
• 0.9 metres
• 1.8 metres
• 3 metres
• 5 metres
• 10 metres

Availability may vary. Select the shortest length that allows safe routing without stretching the cable or placing strain on the connectors.

Straight and Right-Angle Options

Some VE.Direct cables are available with straight connectors at both ends, while other versions feature a right-angle connector at one end. A right-angle connection can be useful where equipment is installed inside a shallow cabinet or close to another component.

Confirm the required connector orientation before ordering, as the standard and right-angle versions may have different part numbers.

Typical Applications

The Victron VE.Direct Cable is ideal for:

• Off-grid solar systems
• Caravans and camper trailers
• Motorhomes
• Marine electrical systems
• Four-wheel drives
• Service and commercial vehicles
• Food trucks and mobile businesses
• Battery-monitoring systems
• Backup-power installations
• Remote equipment
• Residential energy systems
• Victron GX monitoring installations

Product Details

• Brand: Victron Energy
• Product type: Data and communication cable
• Communication interface: VE.Direct
• Connector type: Victron VE.Direct connector
• Cable length: Selected version dependent
• Connector orientation: Version dependent
• Primary purpose: Connection of compatible VE.Direct devices
• Quantity supplied: One cable

Installation Information

Switch off or isolate the relevant equipment before connecting the cable where recommended by the product manuals. Align the connector correctly with the VE.Direct port and insert it carefully without forcing or twisting it.

Route the cable so that it:

• Is not stretched or tightly bent
• Does not rest against sharp metal edges
• Remains clear of excessive heat
• Is protected from moving components
• Does not place strain on the device ports
• Is secured without crushing the cable

After installation, confirm that the connected product appears correctly on the display, control panel or GX device.

Please Note

The VE.Direct cable is a communication cable and is not intended to carry the main charging, inverter or battery current. It does not replace power cables, battery cables, fuses or circuit protection.

VE.Direct is different from VE.Bus, VE.Can, CAN-bus BMS and Ethernet. The connectors and communication protocols are not interchangeable. This cable also does not provide a direct USB or Bluetooth connection unless it is used with the appropriate separate Victron interface.

Confirm the required cable length, connector orientation and compatibility of both devices before ordering.
